| Type | Description |
|---|---|
| Series: | Omnimate BL |
| Package: | Box |
| Part Status: | Active |

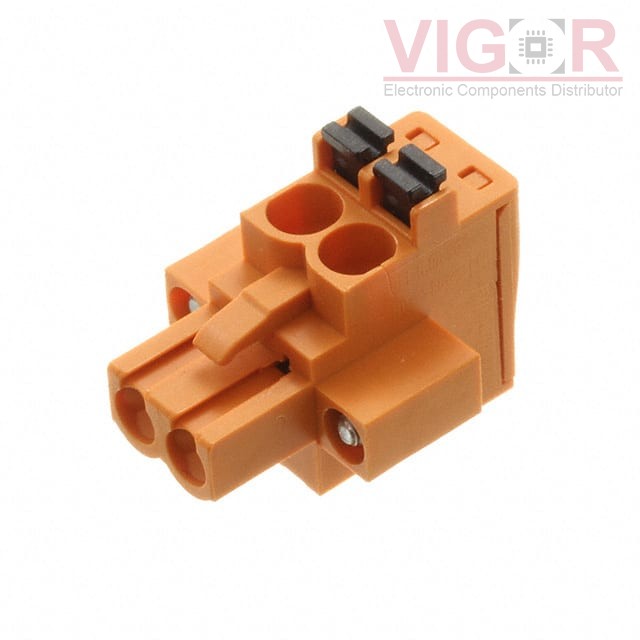

| Type: | Plug, Female Sockets |
| Number of Positions: | 2 |
| Positions Per Level: | 2 |
| Number of Levels: | 1 |
| Pitch: | 0.200" (5.08mm) |
| Header Orientation: | - |
| Plug Wire Entry: | 90° |
| Termination Style: | Screwless - Leg Spring, Push-In Spring |
| Mounting Type: | Free Hanging (In-Line) |
| Current - IEC: | 24A |
| Voltage - IEC: | 400 V |
| Current - UL: | 18.5 A |
| Voltage - UL: | 300 V |
| Wire Gauge or Range - AWG: | 12-26 AWG |
| Wire Gauge or Range - mm²: | 0.2-2.5mm² |
| Color: | Orange |
| Operating Temperature: | -50°C ~ 100°C |
| Contact Mating Finish: | Tin |
| Features: | Mating Flange, Retention Latches (Wire Side) |
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ||
| 10 | ||
| 25 | ||
| 90 | ||
| 180 | ||
| 270 | ||
| 540 | ||
| 1080 | ||
| 5040 |
Current price of 1002090000 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
