1289510000

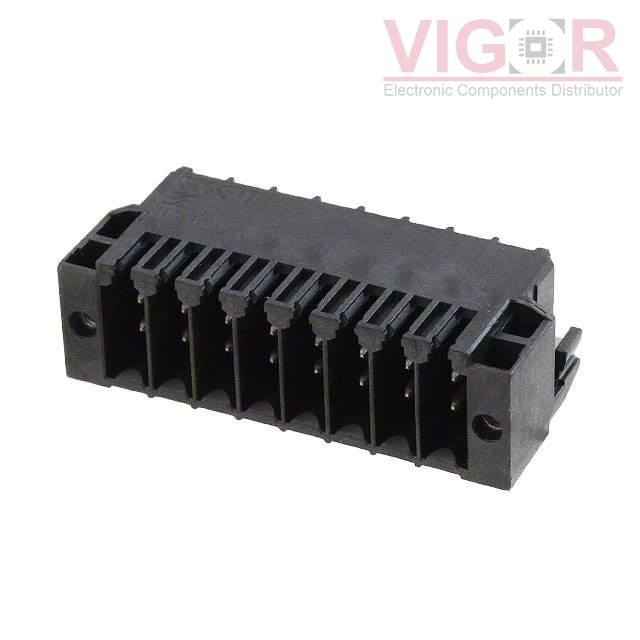

Product image
Product thumb
Part No :

1289510000

Manufacturer
Weidmuller
VIGOR # :

3234599

Description
TERM BLOCK HDR 16POS 90DEG 3.5MM
Catalog
Terminal Blocks - Headers, Plugs and Sockets
DataSheet
1289510000 PDF
Country of origin
-
Date code
-
ads
1289510000 Specifications
Type Description
Series:Omnimate S2C
Package:Bulk
Part Status:Active
Type:Header, Male Pins, Shrouded (4 Side)
Number of Positions:16
Positions Per Level:8
Number of Levels:2
Pitch:0.138" (3.50mm)
Header Orientation:90°, Right Angle
Plug Wire Entry:-
Termination Style:Solder
Mounting Type:Through Hole
Current - IEC:13.4A
Voltage - IEC:200 V
Current - UL:10 A
Voltage - UL:150 V
Wire Gauge or Range - AWG:-
Wire Gauge or Range - mm²:-
Color:Black
Operating Temperature:-50°C ~ 120°C
Contact Mating Finish:Tin
Features:Mating Flange, Solder Retention
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 123192
Shipped from
HK warehouse
Expected Shipping Date
Jan 08 - Jan 12 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $8.43 $8.43
10 $7.22 $72.19
25 $6.89 $172.24
50 $6.19 $309.68
100 $5.86 $586.36
250 $5.31 $1 328.48
500 $4.95 $2 473.71
1000 $4.67 $4 672.58

Current price of 1289510000 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

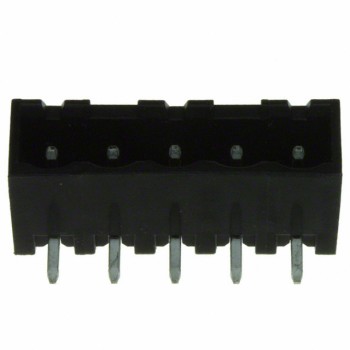

ELFH05210

ELFH05210

TERM BLOCK HDR 5POS 90DEG 5.08MM

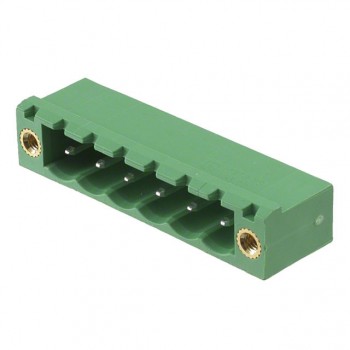

1924127

1924127

TERM BLOCK HDR 6POS 90DEG 5.08MM

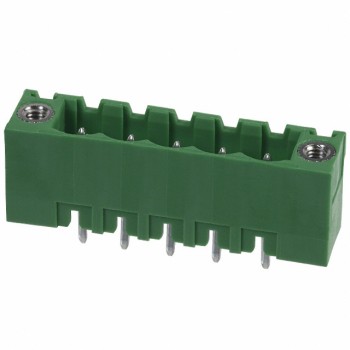

EDSTLZ956/5
