2741760000

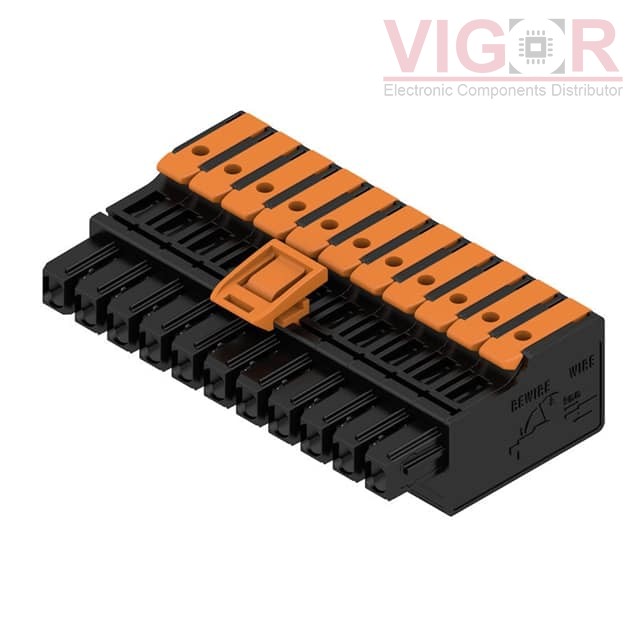

Part No :: 2741760000

Manufacturer: Weidmuller

VIGOR # :: 3238342

Description: PCB CONNECTOR, PLUG, 5.00MM PITC

Catalog: Terminal Blocks - Headers, Plugs and Sockets

DataSheet: 2741760000 PDF

Country of origin: -

Date code: -

2741760000 Specifications

Type	Description
Series:	Omnimate 4.0 MPS
Package:	Box
Part Status:	Active
Type:	Plug, Female Sockets
Number of Positions:	11
Positions Per Level:	11
Number of Levels:	1
Pitch:	0.197" (5.00mm)
Header Orientation:	-
Plug Wire Entry:	180°
Termination Style:	Screwless - Snap In
Mounting Type:	Free Hanging (In-Line)
Current - IEC:	-
Voltage - IEC:	400 V
Current - UL:	18.5 A
Voltage - UL:	300 V
Wire Gauge or Range - AWG:	14-18 AWG
Wire Gauge or Range - mm²:	0.5-2.5mm²
Color:	Black
Operating Temperature:	-50°C ~ 100°C
Contact Mating Finish:	Tin
Features:	Latch Lock

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Jul 26 - Jul 30 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$11.0400~~	~~$11.04~~

Current price of 2741760000 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

1792737

TERM BLOCK HDR 2POS VERT 5.08MM

XW4M-34D2-V1DS

PLUG,DOUBLE-ROW,STRAIGHT,TIN REF

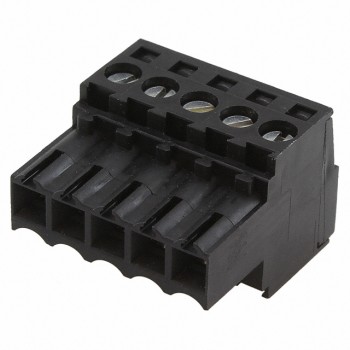

1614090000
