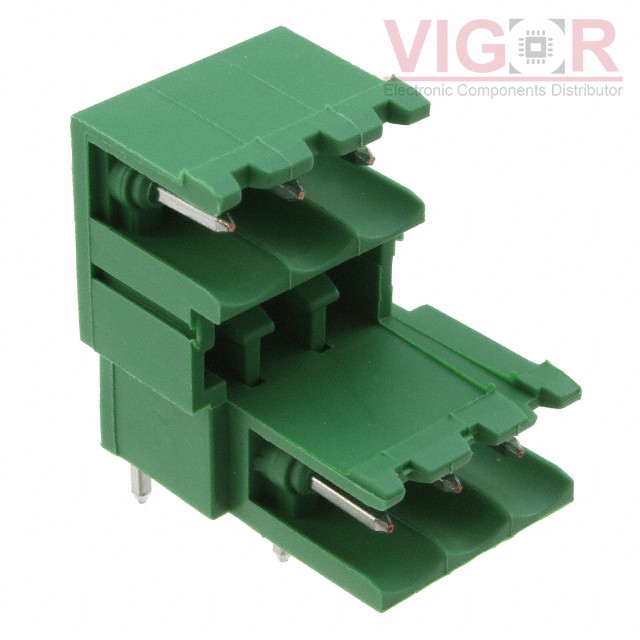

284053-3

Part No :: 284053-3

Manufacturer: TE Connectivity AMP Connectors

VIGOR # :: 3238885

Description: TERM BLOCK HDR 6POS 90DEG 5.08MM

Catalog: Terminal Blocks - Headers, Plugs and Sockets

DataSheet: 284053-3 PDF

Current price of 284053-3 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

284053-3 Specifications

Type	Description
Series:	Buchanan
Package:	Bulk
Part Status:	Active
Type:	Header, Male Pins, Shrouded (2 Side)
Number of Positions:	6
Positions Per Level:	3
Number of Levels:	2
Pitch:	0.200" (5.08mm)
Header Orientation:	90°, Right Angle
Plug Wire Entry:	-
Termination Style:	Solder
Mounting Type:	Through Hole
Current - IEC:	-
Voltage - IEC:	-
Current - UL:	12 A
Voltage - UL:	300 V
Wire Gauge or Range - AWG:	-
Wire Gauge or Range - mm²:	-
Color:	Green
Operating Temperature:	-40°C ~ 110°C
Contact Mating Finish:	Tin
Features:	Interlocking (Side)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Dec 21 - Dec 25 2025

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	$1.36703	$1.36703
10	$1.03642	$10.3642
25	$0.96061	$24.01525
50	$0.86365	$43.1825
100	$0.84257	$84.257
250	$0.73725	$184.3125
500	$0.67406	$337.03
1000	$0.61087	$610.87
5000	$0.53714	$2685.7

Hot Products

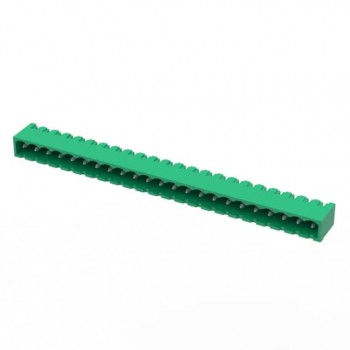

691311500123

TERM BLOCK HDR 23POS VERT 5.08MM

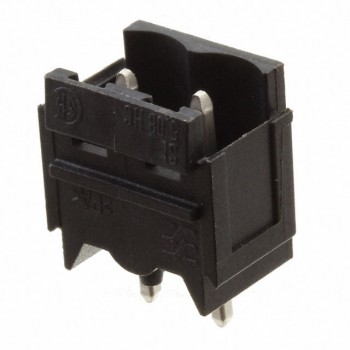

1149400000

TERM BLOCK HDR 2POS VERT 5.08MM

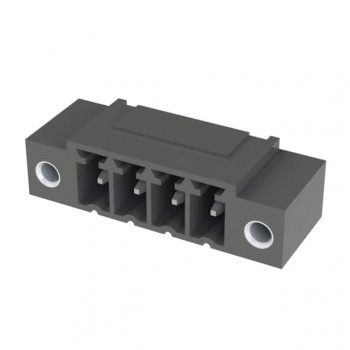

691701320004B
