1000780001

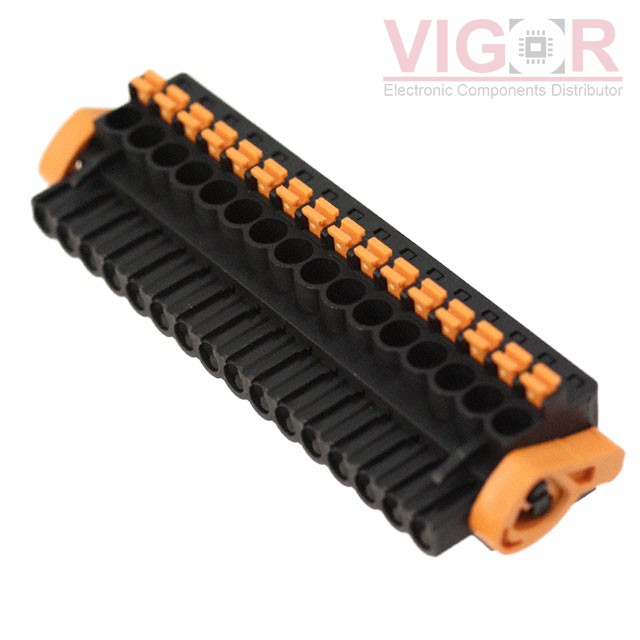

Image is for reference,
please contact us to get the real picture

Part No :: 1000780001

Manufacturer: Weidmuller

Description: TERM BLOCK PLUG 16POS 5.08MM

Catalog: Terminal Blocks - Headers, Plugs and Sockets

Shipped from: HK warehouse

Expected Shipping Date: Oct 21 - Oct 25 2025

DataSheet: 1000780001 PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of 1000780001 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

1000780001 Specifications

Type	Description
Series:	Omnimate BL
Package:	Box
Part Status:	Obsolete
Type:	Plug, Female Sockets
Number of Positions:	16
Positions Per Level:	16
Number of Levels:	1
Pitch:	0.200" (5.08mm)
Header Orientation:	-
Plug Wire Entry:	90°
Termination Style:	Screwless - Leg Spring, Push-In Spring
Mounting Type:	Free Hanging (In-Line)
Current - IEC:	24A
Voltage - IEC:	400 V
Current - UL:	18.5 A
Voltage - UL:	300 V
Wire Gauge or Range - AWG:	12-26 AWG
Wire Gauge or Range - mm²:	0.2-2.5mm²
Color:	Black
Operating Temperature:	-50°C ~ 100°C
Contact Mating Finish:	Tin
Features:	Ejector Latches, Retention Latches (Non-Wire Side)
