ED3001/9-KD

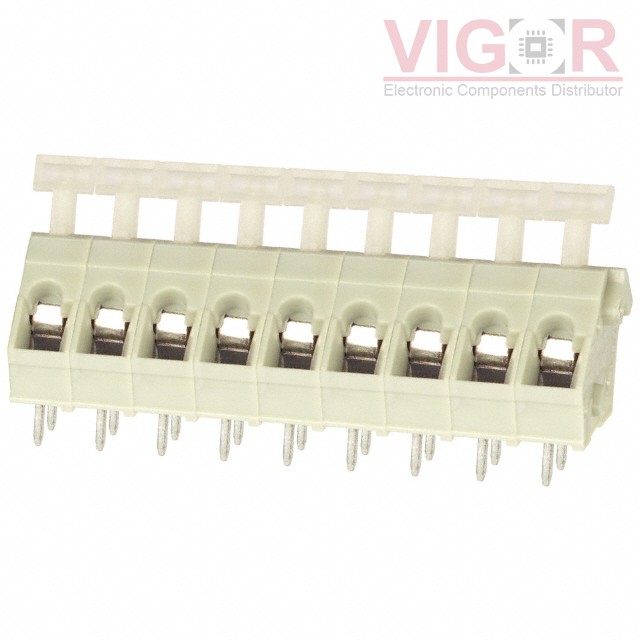

Image is for reference,
please contact us to get the real picture

Part No :: ED3001/9-KD

Manufacturer: On-Shore Technology, Inc.

Description: TERM BLOCK 9POS 45DEG 5MM PCB

Catalog: Terminal Blocks - Wire to Board

DataSheet: ED3001/9-KD PDF

Availability: 0 pieces

Unit Price: ~~$3.16660~~

Current price of ED3001/9-KD is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

ED3001/9-KD Specifications

Type	Description
Series:	ED3001/KD
Package:	Bulk
Part Status:	Active
Number of Levels:	1
Positions Per Level:	9
Pitch:	0.197" (5.00mm)
Mating Orientation:	45° (135°) Angle with Board
Current:	16 A
Voltage:	300 V
Wire Gauge:	14-28 AWG
Mounting Type:	Through Hole
Wire Termination:	Screwless - Leg Spring, Push-In Spring
Features:	Interlocking (Side), Lever Actuated
Color:	Gray, Slate

Please confirm the specifications of the products when ordering.
