ED505/3DS

Part No :: ED505/3DS

Manufacturer: On-Shore Technology, Inc.

VIGOR # :: 3240623

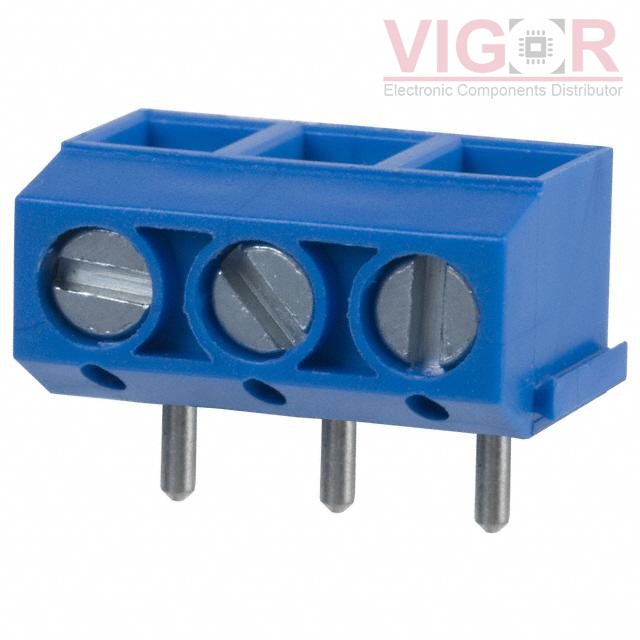

Description: TERM BLK 3POS TOP ENTRY 5MM PCB

Catalog: Terminal Blocks - Wire to Board

DataSheet: ED505/3DS PDF

Country of origin: -

Date code: -

ED505/3DS Specifications

Type	Description
Series:	ED505/DS
Package:	Bulk
Part Status:	Active
Number of Levels:	1
Positions Per Level:	3
Pitch:	0.197" (5.00mm)
Mating Orientation:	Vertical with Board
Current:	15 A
Voltage:	300 V
Wire Gauge:	14-22 AWG
Mounting Type:	Through Hole
Wire Termination:	Screw - Leaf Spring, Wire Guard
Features:	Interlocking (Side)
Color:	Blue
