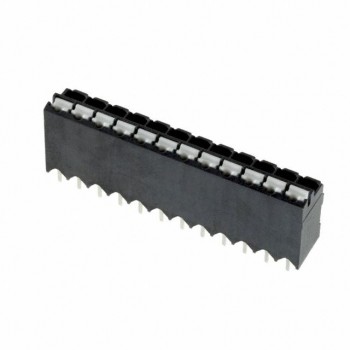

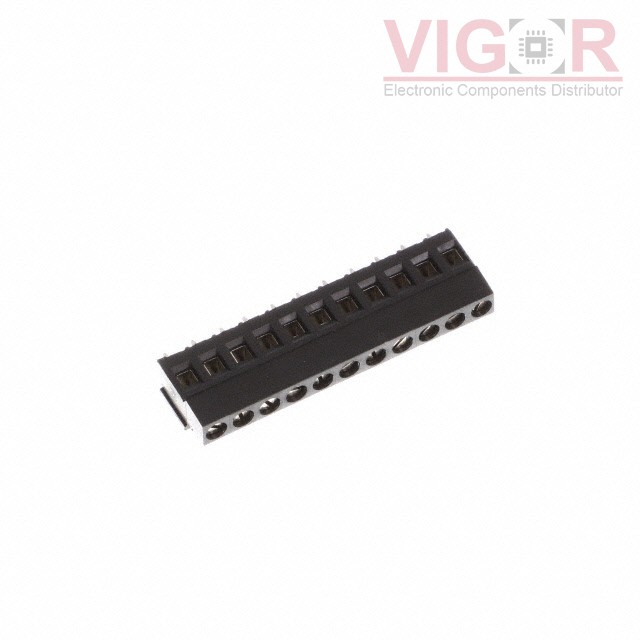

1-796682-1

Part No :: 1-796682-1

Manufacturer: TE Connectivity AMP Connectors

VIGOR # :: 3243520

Description: TERM BLK 11P SIDE ENTRY 5MM PCB

Catalog: Terminal Blocks - Wire to Board

DataSheet: 1-796682-1 PDF

Current price of 1-796682-1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

1-796682-1 Specifications

Type	Description
Series:	Buchanan
Package:	Bulk
Part Status:	Active
Number of Levels:	1
Positions Per Level:	11
Pitch:	0.197" (5.00mm)
Mating Orientation:	Horizontal with Board
Current:	17.5 A
Voltage:	300 V
Wire Gauge:	12-30 AWG
Mounting Type:	Through Hole
Wire Termination:	Screw - Rising Cage Clamp
Features:	Interlocking (Side)
Color:	Black

Please confirm the specifications of the products when ordering.
