H8504-01

Part No :: H8504-01

Manufacturer: Harwin

VIGOR # :: 3195744

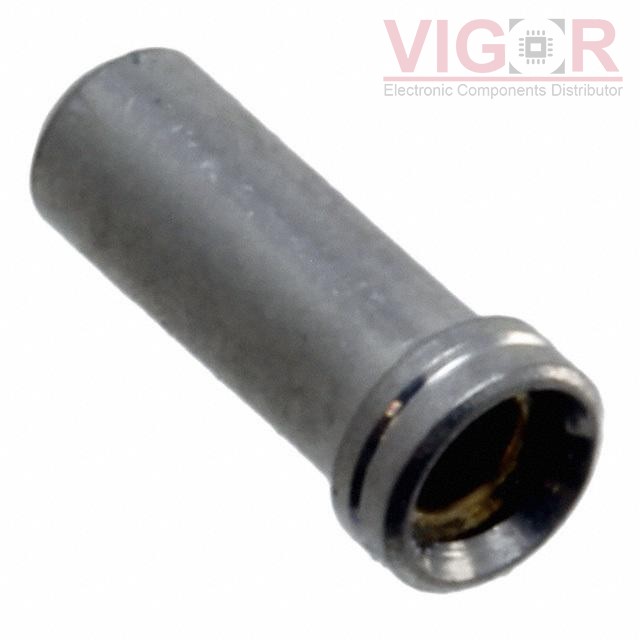

Description: CONN PIN RCPT .024-.033 SOLDER

Catalog: Terminals - PC Pin Receptacles, Socket Connectors

DataSheet: H8504-01 PDF

Country of origin: -

Date code: -

H8504-01 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Tail Type:	No Tail
Termination:	Solder
Length - Overall:	0.224" (5.69mm)
Accepts Pin Diameter:	0.024" ~ 0.033" (0.60mm ~ 0.85mm)
Accepts Square Pin Size:	-
Pin Hole Diameter:	-
Mounting Hole Diameter:	0.075" ~ 0.079" (1.91mm ~ 2.01mm)
Flange Diameter:	0.093" (2.36mm)
Tail Diameter:	-
Socket Depth:	0.183" (4.65mm)
Contact Material:	Beryllium Copper
Contact Finish:	Gold
Contact Finish Thickness:	5.90µin (0.150µm)
