1424-4

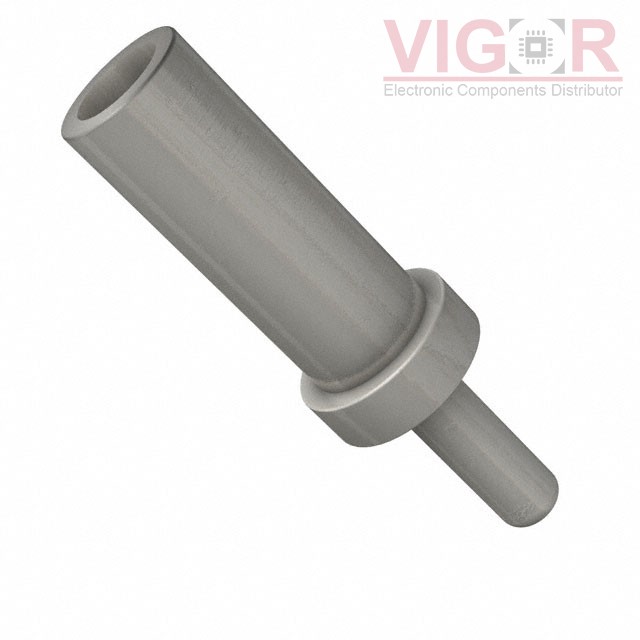

Image is for reference,
please contact us to get the real picture

Part No :: 1424-4

Manufacturer: Keystone Electronics Corp.

Description: CONN PC PIN CIRC 0.025DIA TIN

Catalog: Terminals - PC Pin, Single Post Connectors

DataSheet: 1424-4 PDF

Availability: 87502200 pieces

Unit Price: ~~$0.23000~~

Current price of 1424-4 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

1424-4 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Terminal Type:	PC Pin
Terminal Style:	Single End
Pin Size - Above Flange:	0.025" (0.64mm) Dia
Pin Size - Below Flange:	-
Length - Above Flange:	0.079" (2.01mm)
Length - Below Flange:	0.145" (3.68mm)
Length - Overall:	0.245" (6.22mm)
Flange Diameter:	0.062" (1.57mm)
Mounting Hole Diameter:	0.052" (1.32mm)
Mounting Type:	Through Hole
Termination:	Swage
Insulation:	Non-Insulated
Board Thickness:	0.125" (3.18mm)
Contact Material:	Brass
Contact Finish:	Tin
Contact Finish Thickness:	200.0µin (5.08µm)

Please confirm the specifications of the products when ordering.
