11076

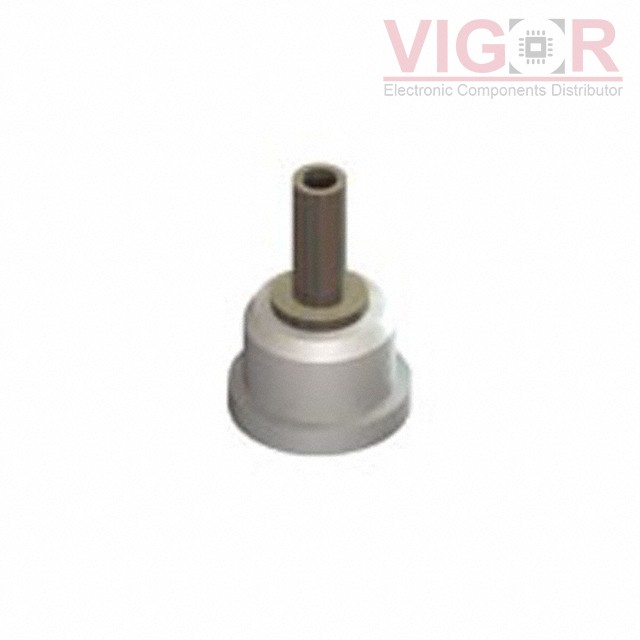

Image is for reference,
please contact us to get the real picture

Part No :: 11076

Manufacturer: Keystone Electronics Corp.

Description: CONN PC PIN CIRC 0.045DIA TIN

Catalog: Terminals - PC Pin, Single Post Connectors

DataSheet: 11076 PDF

Availability: 149800 pieces

Unit Price: ~~$1.88000~~

Current price of 11076 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

11076 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Terminal Type:	PC Pin
Terminal Style:	Single End
Pin Size - Above Flange:	0.045" (1.14mm) Dia
Pin Size - Below Flange:	-
Length - Above Flange:	0.200" (5.08mm)
Length - Below Flange:	-
Length - Overall:	0.225" (5.72mm)
Flange Diameter:	0.150" (3.81mm)
Mounting Hole Diameter:	0.113" (2.87mm)
Mounting Type:	Through Hole, Bottom Entry
Termination:	Press-Fit
Insulation:	Insulated
Board Thickness:	0.062" (1.57mm)
Contact Material:	Brass
Contact Finish:	Tin
Contact Finish Thickness:	-
