1-103577-7

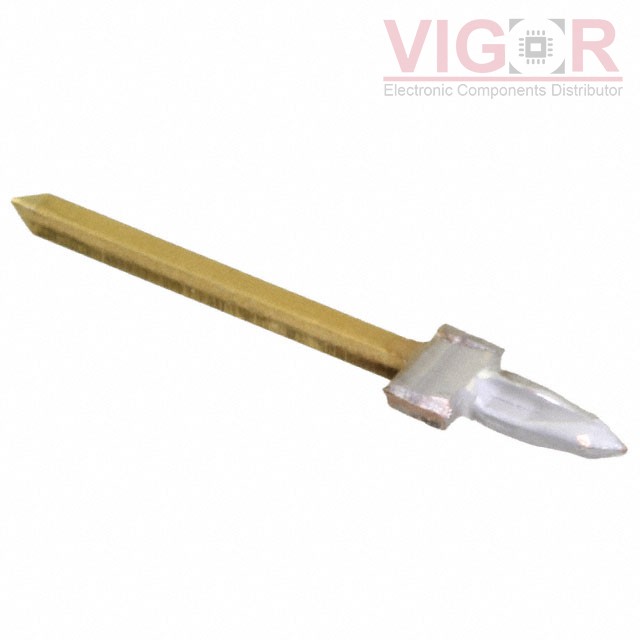

Image is for reference,
please contact us to get the real picture

Part No :: 1-103577-7

Manufacturer: TE Connectivity AMP Connectors

Description: CONN PC PIN SQUARE 0.025 GOLD

Catalog: Terminals - PC Pin, Single Post Connectors

DataSheet: 1-103577-7 PDF

Availability: 0 pieces

Unit Price: ~~$0.19400~~

Current price of 1-103577-7 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

1-103577-7 Specifications

Type	Description
Series:	AMPMODU Mod II
Package:	Reel
Part Status:	Active
Terminal Type:	Single Post
Terminal Style:	Pin Retention
Pin Size - Above Flange:	0.025" (0.64mm) Square
Pin Size - Below Flange:	0.025" (0.64mm) Square
Length - Above Flange:	-
Length - Below Flange:	-
Length - Overall:	0.341" (8.66mm)
Flange Diameter:	-
Mounting Hole Diameter:	0.034" ~ 0.036" (0.86mm ~ 0.91mm)
Mounting Type:	Through Hole
Termination:	Press-Fit
Insulation:	Non-Insulated
Board Thickness:	0.062" ~ 0.125" (1.57mm ~ 3.18mm)
Contact Material:	Phosphor Bronze
Contact Finish:	Gold
Contact Finish Thickness:	15.0µin (0.38µm)

Please confirm the specifications of the products when ordering.
