H2181-01

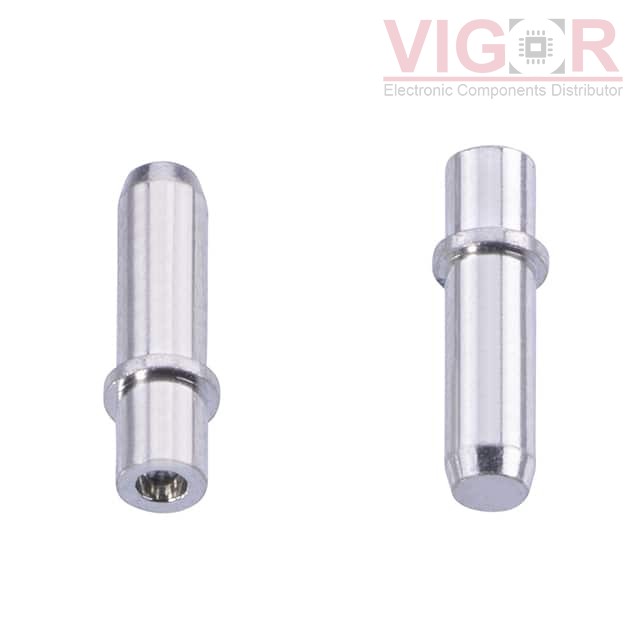

Image is for reference,
please contact us to get the real picture

Part No :: H2181-01

Manufacturer: Harwin

Description: CONN PC PIN 1.75MM DIA TIN 5MM

Catalog: Terminals - PC Pin, Single Post Connectors

DataSheet: H2181-01 PDF

Availability: 2900 pieces

Unit Price: ~~$0.47000~~

Current price of H2181-01 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

H2181-01 Specifications

Type	Description
Series:	-
Package:	Bag
Part Status:	Active
Terminal Type:	PC Pin
Terminal Style:	Single End
Pin Size - Above Flange:	0.070" (1.78mm) Dia
Pin Size - Below Flange:	0.070" (1.78mm) Dia
Length - Above Flange:	0.197" (5.00mm)
Length - Below Flange:	0.077" (1.95mm)
Length - Overall:	0.289" (7.35mm)
Flange Diameter:	0.089" (2.25mm)
Mounting Hole Diameter:	0.071" ~ 0.075" (1.80mm ~ 1.90mm)
Mounting Type:	Through Hole
Termination:	Swage
Insulation:	Non-Insulated
Board Thickness:	0.063" (1.60mm)
Contact Material:	Brass
Contact Finish:	Tin
Contact Finish Thickness:	-
