H2101B01

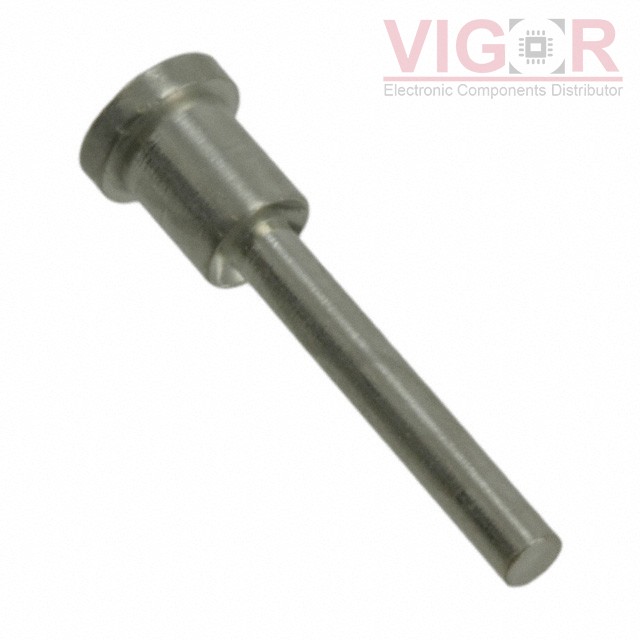

Image is for reference,
please contact us to get the real picture

Part No :: H2101B01

Manufacturer: Harwin

Description: CONN PC PIN CIRC 0.038DIA TIN

Catalog: Terminals - PC Pin, Single Post Connectors

DataSheet: H2101B01 PDF

Availability: 0 pieces

Unit Price: ~~$0.14715~~

Current price of H2101B01 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

H2101B01 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Terminal Type:	PC Pin
Terminal Style:	Single End
Pin Size - Above Flange:	-
Pin Size - Below Flange:	0.038" (0.97mm) Dia
Length - Above Flange:	-
Length - Below Flange:	0.333" (8.45mm)
Length - Overall:	0.353" (8.97mm)
Flange Diameter:	0.094" (2.39mm)
Mounting Hole Diameter:	0.070" ~ 0.074" (1.78mm ~ 1.87mm)
Mounting Type:	Through Hole
Termination:	Swage
Insulation:	Non-Insulated
Board Thickness:	0.063" (1.60mm)
Contact Material:	Brass
Contact Finish:	Tin
Contact Finish Thickness:	-

Please confirm the specifications of the products when ordering.
