0008500473

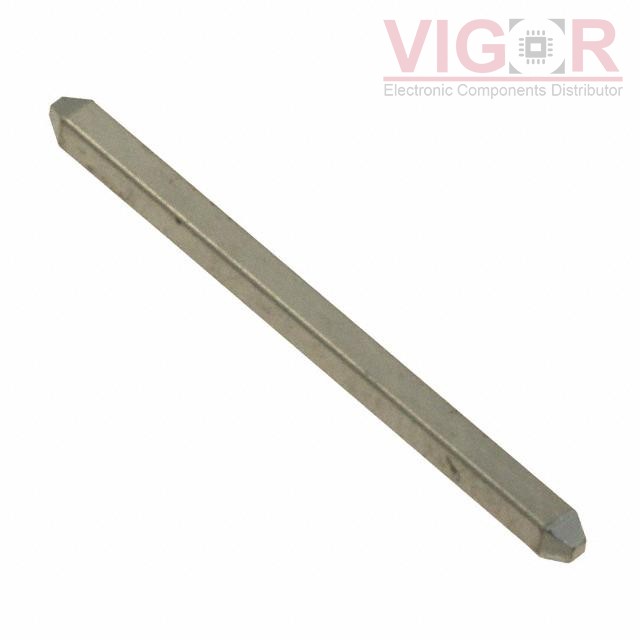

Product image
Product thumb
Part No :

0008500473

Manufacturer
Woodhead - Molex
VIGOR # :

4702648

Description
CONN PC PIN SQUARE 0.045 TIN
Catalog
Terminals - PC Pin, Single Post Connectors
DataSheet
0008500473 PDF
Country of origin
-
Date code
-
ads
0008500473 Specifications
Type Description
Series:KK 2161
Package:Bulk
Part Status:Obsolete
Terminal Type:Single Post
Terminal Style:Smooth
Pin Size - Above Flange:0.045" (1.14mm) Square
Pin Size - Below Flange:0.045" (1.14mm) Square
Length - Above Flange:-
Length - Below Flange:-
Length - Overall:0.472" (11.99mm)
Flange Diameter:-
Mounting Hole Diameter:0.050" ~ 0.053" (1.27mm ~ 1.35mm)
Mounting Type:Through Hole
Termination:Press-Fit
Insulation:Non-Insulated
Board Thickness:0.062" (1.57mm)
Contact Material:Brass
Contact Finish:Tin
Contact Finish Thickness:200.0µin (5.08µm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 0
Shipped from
HK warehouse
Expected Shipping Date
Feb 03 - Feb 07 2026
Pricing(USD)
Quantity Unit Price Ext. Price

Current price of 0008500473 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
