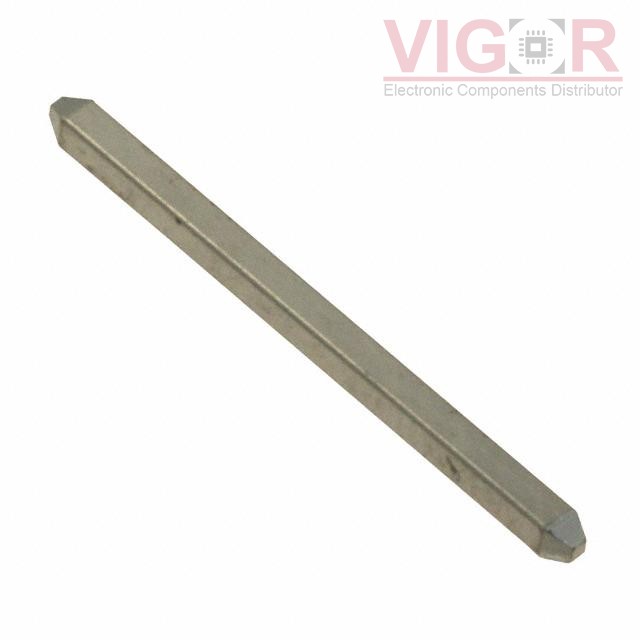

0008500497

Part No :: 0008500497

Manufacturer: Woodhead - Molex

VIGOR # :: 4702692

Description: CONN PC PIN SQUARE 0.045 TIN

Catalog: Terminals - PC Pin, Single Post Connectors

DataSheet: 0008500497 PDF

Country of origin: -

Date code: -

0008500497 Specifications

Type	Description
Series:	KK 2161
Package:	Bulk
Part Status:	Obsolete
Terminal Type:	Single Post
Terminal Style:	Smooth
Pin Size - Above Flange:	0.045" (1.14mm) Square
Pin Size - Below Flange:	0.045" (1.14mm) Square
Length - Above Flange:	-
Length - Below Flange:	-
Length - Overall:	0.720" (18.29mm)
Flange Diameter:	-
Mounting Hole Diameter:	0.050" ~ 0.053" (1.27mm ~ 1.35mm)
Mounting Type:	Through Hole
Termination:	Press-Fit
Insulation:	Non-Insulated
Board Thickness:	0.062" (1.57mm)
Contact Material:	Brass
Contact Finish:	Tin
Contact Finish Thickness:	200.0µin (5.08µm)
