76-IPD22

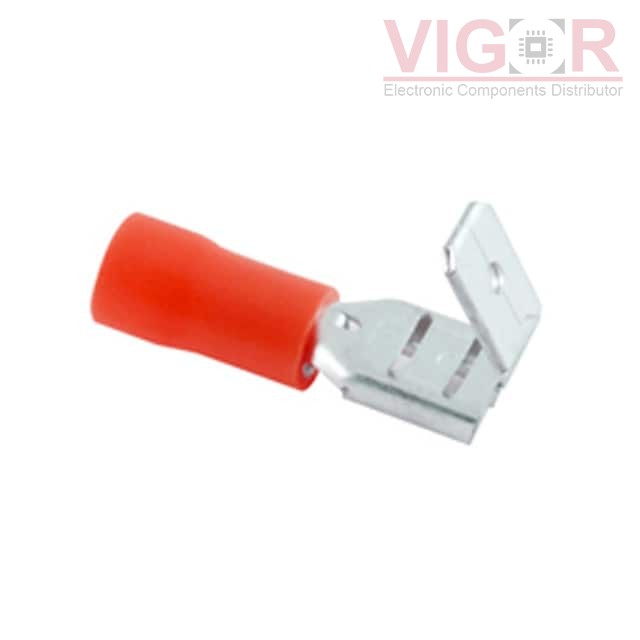

Image is for reference,
please contact us to get the real picture

Part No :: 76-IPD22

Manufacturer: NTE Electronics, Inc.

Description: PVC INS PIGGYBACK DISCONN

Catalog: Terminals - Quick Connects, Quick Disconnect Connectors

DataSheet: 76-IPD22 PDF

Availability: 3646 pieces

Unit Price: ~~$0.11000~~

Current price of 76-IPD22 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

76-IPD22 Specifications

Type	Description
Series:	NEMA
Package:	Bag
Part Status:	Active
Terminal Type:	Stacked
Gender:	Female and Male
Tab Width:	0.250" (6.35mm)
Tab Thickness:	0.032" (0.81mm)
Tab Length:	0.315" (8.00mm)
Length - Overall:	0.827" (21.00mm)
Termination:	Crimp
Wire Gauge:	18-22 AWG
Insulation:	Non-Mating End Insulated
Mounting Type:	Free Hanging (In-Line)
Features:	-
Color:	Red
Contact Material:	Brass
Contact Finish:	Electro-Tin

Please confirm the specifications of the products when ordering.
