0190170004

Part No :: 0190170004

Manufacturer: Woodhead - Molex

VIGOR # :: 3253956

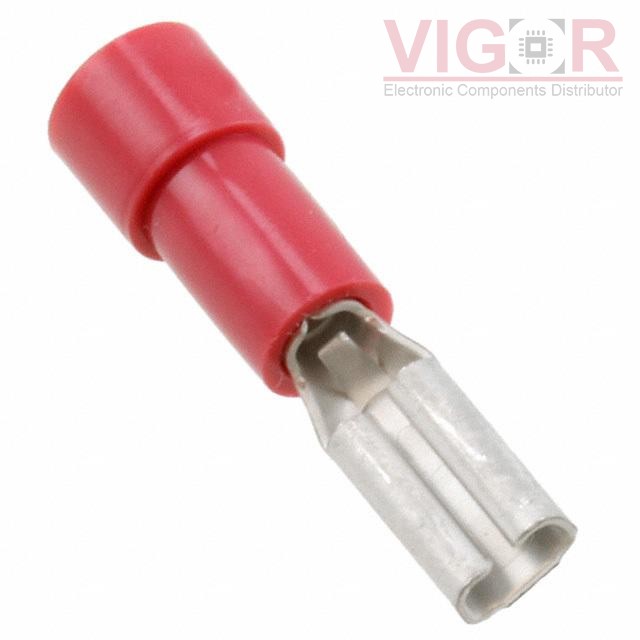

Description: CONN QC RCPT 18-22AWG 0.110

Catalog: Terminals - Quick Connects, Quick Disconnect Connectors

DataSheet: 0190170004 PDF

Country of origin: -

Date code: -

0190170004 Specifications

Type	Description
Series:	InsulKrimp
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Terminal Type:	Standard
Gender:	Female
Tab Width:	0.110" (2.79mm)
Tab Thickness:	0.020" (0.51mm)
Tab Length:	0.250" (6.35mm)
Length - Overall:	0.780" (19.81mm)
Termination:	Crimp
Wire Gauge:	18-22 AWG
Insulation:	Non-Mating End Insulated
Mounting Type:	Free Hanging (In-Line)
Features:	-
Color:	Red
Contact Material:	Brass
Contact Finish:	Electro-Tin

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 10607

Shipped from

HK warehouse

Expected Shipping Date

Apr 23 - Apr 27 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$0.4100~~	~~$0.41~~
1500	~~$0.1851~~	~~$277.64~~
3000	~~$0.1784~~	~~$535.20~~
7500	~~$0.1672~~	~~$1 254.38~~
10500	~~$0.1561~~	~~$1 639.05~~
15000	~~$0.1505~~	~~$2 257.95~~
37500	~~$0.1483~~	~~$5 560.88~~

Current price of 0190170004 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
