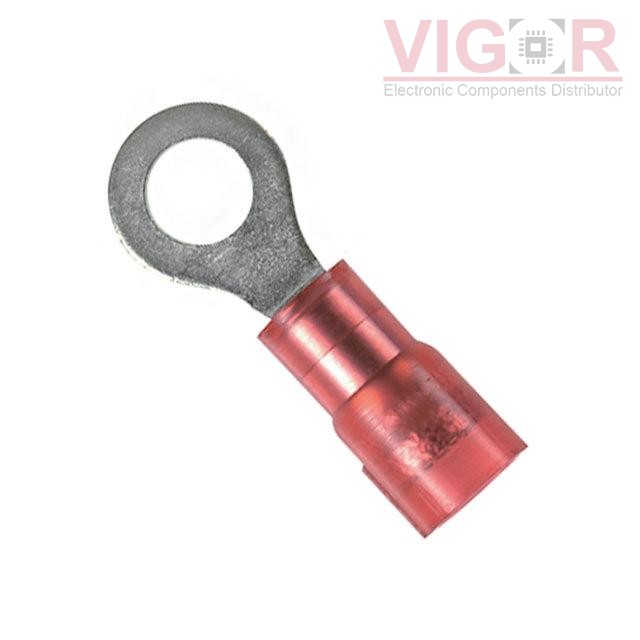

PMNF1-3R-X

Part No :: PMNF1-3R-X

Manufacturer: Panduit Corporation

VIGOR # :: 4709172

Description: CONN RING CIRC 18-22AWG M3 CRIMP

Catalog: Terminals - Ring Connectors

DataSheet: PMNF1-3R-X PDF

Country of origin: -

Date code: -

PMNF1-3R-X Specifications

Type	Description
Series:	Pan-Term®
Package:	Bulk
Part Status:	Obsolete
Terminal Type:	Circular
Stud/Tab Size:	M3 Stud
Thickness:	-
Width - Outer Edges:	0.230" (5.84mm)
Length - Overall:	0.760" (19.30mm)
Mounting Type:	Free Hanging (In-Line)
Termination:	Crimp
Wire Gauge:	18-22 AWG
Insulation:	Insulated
Features:	Serrated Termination
Color:	Red
Contact Material:	Copper
Contact Finish:	Tin
