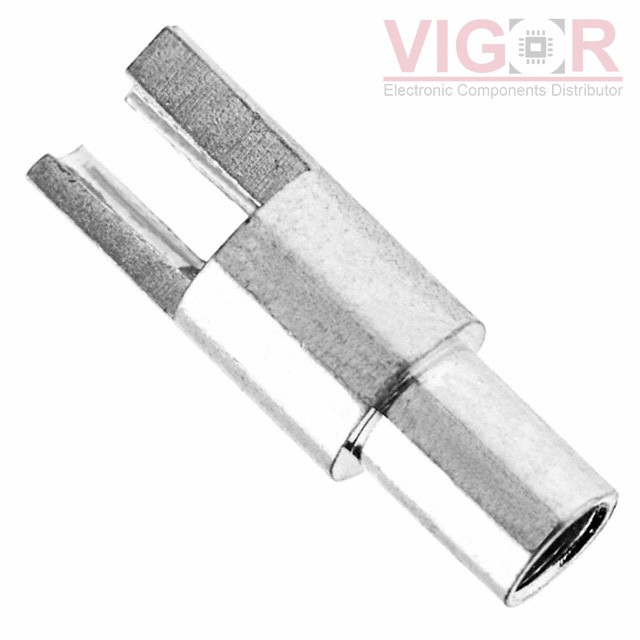

H2055-01

Part No :: H2055-01

Manufacturer: Harwin

Description: TERM TURRET HOLLOW L=6.35MM TIN

Catalog: Terminals - Turret Connectors

DataSheet: H2055-01 PDF

Availability: 0 pieces

Current price of H2055-01 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

H2055-01 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Terminal Type:	Single End, Fork, Hollow
Number of Turrets:	Single
Length - Above Board:	0.250" (6.35mm)
Length - Below Flange:	0.125" ~ 0.130" (3.18mm ~ 3.30mm)
Length - Overall:	0.375" (9.53mm)
Mounting Type:	Through Hole
Termination:	Swage
Flange Diameter:	0.125" (3.18mm)
Diameter - Turret Head:	-
Staking Side OD:	0.091" ~ 0.094" (2.31mm ~ 2.39mm)
Staking Side ID:	0.067" ~ 0.070" (1.70mm ~ 1.78mm)
Mounting Hole Diameter:	0.094" ~ 0.097" (2.39mm ~ 2.46mm)
Board Thickness:	0.094" (2.39mm)
Contact Material:	Brass Alloy
Contact Finish:	Tin
Contact Finish Thickness:	-
Insulation:	Non-Insulated
