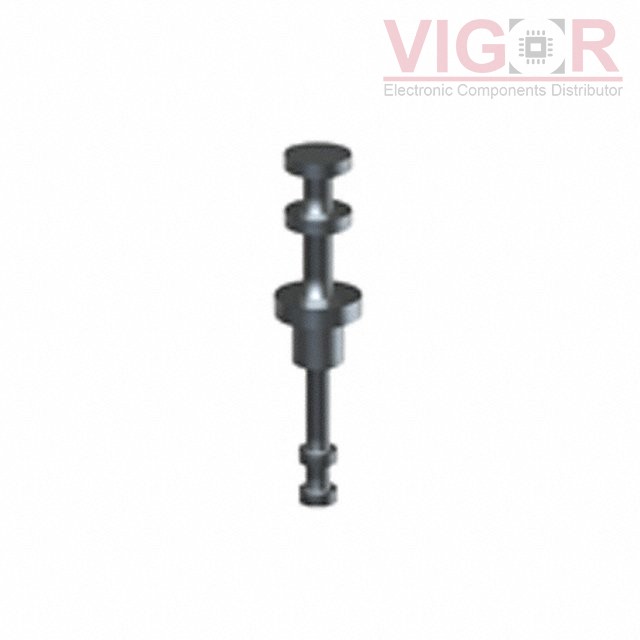

1545-3

Part No :: 1545-3

Manufacturer: Keystone Electronics Corp.

Description: TERM TURRET DOUBLE L=9.14MM TIN

Catalog: Terminals - Turret Connectors

DataSheet: 1545-3 PDF

Availability: 6500 pieces

Current price of 1545-3 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

1545-3 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Terminal Type:	Double End
Number of Turrets:	Double
Length - Above Board:	0.360" (9.14mm)
Length - Below Flange:	0.447" (11.35mm)
Length - Overall:	0.807" (20.50mm)
Mounting Type:	Through Hole
Termination:	Staking Flare
Flange Diameter:	0.187" (4.75mm)
Diameter - Turret Head:	0.082" (2.08mm), 0.145" (3.68mm)
Staking Side OD:	-
Staking Side ID:	-
Mounting Hole Diameter:	0.116" (2.95mm)
Board Thickness:	0.093" (2.36mm)
Contact Material:	Brass
Contact Finish:	Tin
Contact Finish Thickness:	-
Insulation:	Non-Insulated

Please confirm the specifications of the products when ordering.
