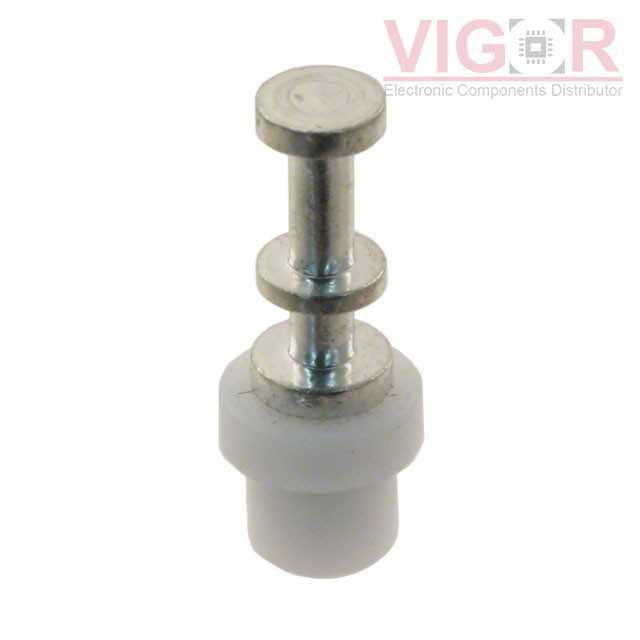

11301

Part No :: 11301

Manufacturer: Keystone Electronics Corp.

VIGOR # :: 3196916

Description: TERM TURRET SINGLE L=6.35MM TIN

Catalog: Terminals - Turret Connectors

DataSheet: 11301 PDF

Country of origin: -

Date code: -

11301 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Terminal Type:	Single End
Number of Turrets:	Double
Length - Above Board:	0.250" (6.35mm)
Length - Below Flange:	0.080" (2.03mm)
Length - Overall:	0.330" (8.38mm)
Mounting Type:	Through Hole
Termination:	Press-Fit
Flange Diameter:	0.125" (3.18mm)
Diameter - Turret Head:	0.086" (2.18mm)
Staking Side OD:	-
Staking Side ID:	-
Mounting Hole Diameter:	0.086" (2.18mm)
Board Thickness:	0.062" (1.57mm)
Contact Material:	Brass
Contact Finish:	Tin
Contact Finish Thickness:	-
Insulation:	Insulated

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 581300

Shipped from

HK warehouse

Expected Shipping Date

Oct 24 - Oct 28 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$1.3800~~	~~$1.38~~
10	~~$1.2158~~	~~$12.16~~
50	~~$1.0964~~	~~$54.82~~
250	~~$0.9534~~	~~$238.35~~
1000	~~$0.8535~~	~~$853.46~~
2500	~~$0.7151~~	~~$1 787.78~~
5000	~~$0.6674~~	~~$3 336.85~~

Current price of 11301 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

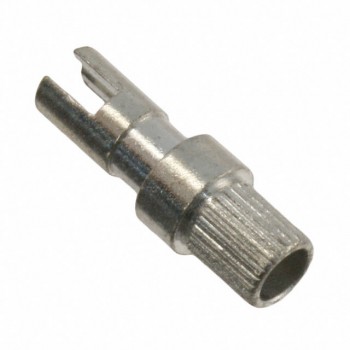

1557-4
