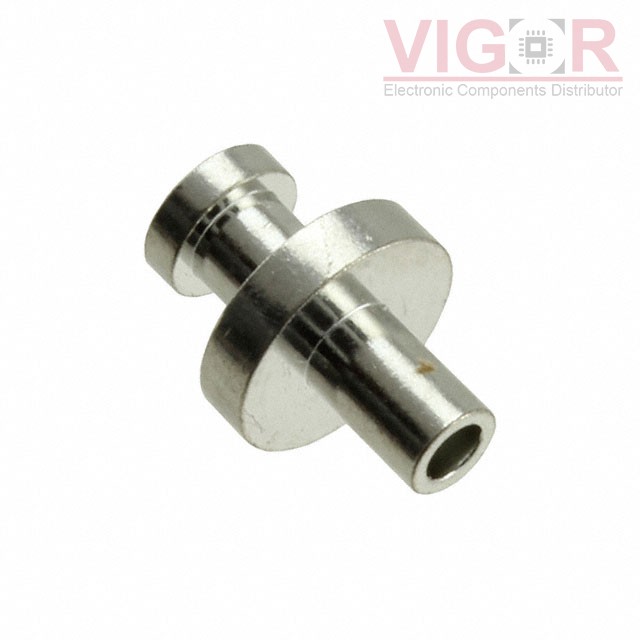

H2061-01

Part No :: H2061-01

Manufacturer: Harwin

Description: TERM TURRET SINGLE L=3.18MM TIN

Catalog: Terminals - Turret Connectors

DataSheet: H2061-01 PDF

Availability: 816 pieces

Current price of H2061-01 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

H2061-01 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Terminal Type:	Single End
Number of Turrets:	Single
Length - Above Board:	0.125" (3.18mm)
Length - Below Flange:	0.094" ~ 0.099" (2.39mm ~ 2.51mm)
Length - Overall:	0.219" (5.56mm)
Mounting Type:	Through Hole
Termination:	Swage
Flange Diameter:	0.156" ~ 0.161" (3.96mm ~ 4.09mm)
Diameter - Turret Head:	0.089" ~ 0.094" (2.26mm ~ 2.39mm)
Staking Side OD:	0.059" ~ 0.063" (1.50mm ~ 1.59mm)
Staking Side ID:	-
Mounting Hole Diameter:	0.063" ~ 0.066" (1.60mm ~ 1.68mm)
Board Thickness:	0.063" (1.60mm)
Contact Material:	Brass Alloy
Contact Finish:	Tin
Contact Finish Thickness:	-
Insulation:	Non-Insulated

Please confirm the specifications of the products when ordering.
