11322

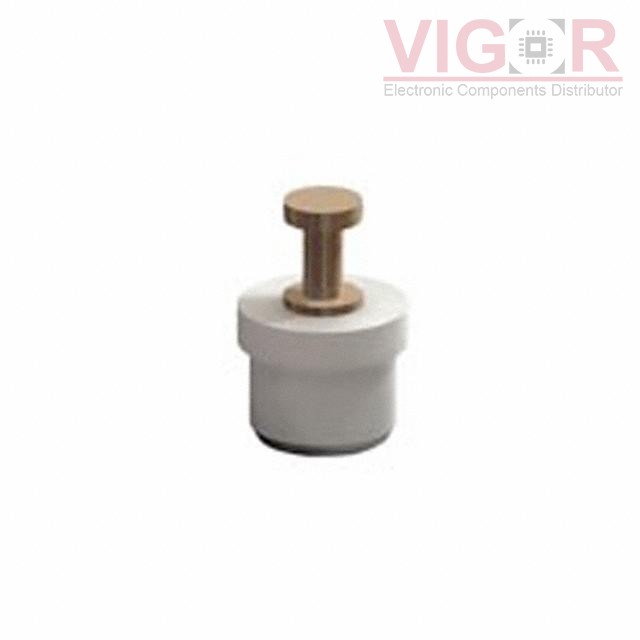

Image is for reference,
please contact us to get the real picture

Part No :: 11322

Manufacturer: Keystone Electronics Corp.

Description: TERM TURRET HOLLOW L=4.65MM TIN

Catalog: Terminals - Turret Connectors

DataSheet: 11322 PDF

Availability: 12 pieces

Unit Price: ~~$1.42000~~

Current price of 11322 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

11322 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Terminal Type:	Single End, Hollow
Number of Turrets:	Single
Length - Above Board:	0.183" (4.65mm)
Length - Below Flange:	0.110" (2.79mm)
Length - Overall:	0.293" (7.44mm)
Mounting Type:	Through Hole
Termination:	Press-Fit
Flange Diameter:	0.150" (3.81mm)
Diameter - Turret Head:	0.090" (2.29mm)
Staking Side OD:	-
Staking Side ID:	-
Mounting Hole Diameter:	0.113" (2.87mm)
Board Thickness:	0.062" (1.57mm)
Contact Material:	Brass
Contact Finish:	Tin
Contact Finish Thickness:	-
Insulation:	Insulated

Please confirm the specifications of the products when ordering.
