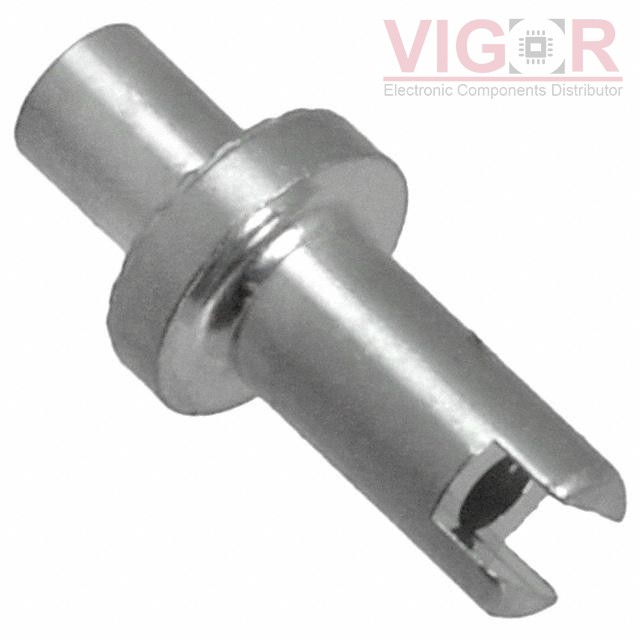

H3051-01

Part No :: H3051-01

Manufacturer: Harwin

Description: TERM TURRET HOLLOW L=6.27-6.6MM

Catalog: Terminals - Turret Connectors

DataSheet: H3051-01 PDF

Availability: 0 pieces

Current price of H3051-01 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

H3051-01 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Terminal Type:	Single End, Fork, Hollow
Number of Turrets:	Single
Length - Above Board:	0.247" ~ 0.260" (6.27mm ~ 6.60mm)
Length - Below Flange:	0.094" ~ 0.099" (2.39mm ~ 2.51mm)
Length - Overall:	0.346" ~ 0.354" (8.79mm ~ 8.99mm)
Mounting Type:	Through Hole
Termination:	Swage
Flange Diameter:	0.153" ~ 0.159" (3.88mm ~ 4.04mm)
Diameter - Turret Head:	-
Staking Side OD:	0.080" ~ 0.083" (2.03mm ~ 2.12mm)
Staking Side ID:	-
Mounting Hole Diameter:	0.084" ~ 0.087" (2.13mm ~ 2.21mm)
Board Thickness:	0.063" (1.60mm)
Contact Material:	Brass Alloy
Contact Finish:	Tin
Contact Finish Thickness:	-
Insulation:	Non-Insulated
