1528-1

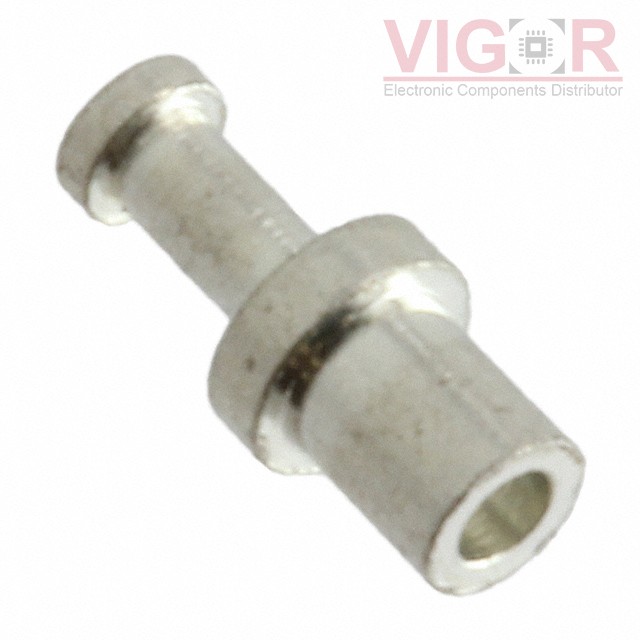

Image is for reference,
please contact us to get the real picture

Part No :: 1528-1

Manufacturer: Keystone Electronics Corp.

Description: TERM TURRET SINGLE L=2.36MM TIN

Catalog: Terminals - Turret Connectors

DataSheet: 1528-1 PDF

Availability: 7585 pieces

Unit Price: ~~$0.27000~~

Current price of 1528-1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

1528-1 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Terminal Type:	Single End
Number of Turrets:	Single
Length - Above Board:	0.093" (2.36mm)
Length - Below Flange:	0.054" (1.37mm)
Length - Overall:	0.147" (3.73mm)
Mounting Type:	Through Hole
Termination:	Staking Flare
Flange Diameter:	0.062" (1.57mm)
Diameter - Turret Head:	0.040" (1.02mm)
Staking Side OD:	0.047" (1.19mm)
Staking Side ID:	-
Mounting Hole Diameter:	0.052" (1.32mm)
Board Thickness:	0.032" (0.81mm)
Contact Material:	Brass
Contact Finish:	Tin
Contact Finish Thickness:	-
Insulation:	Non-Insulated

Please confirm the specifications of the products when ordering.
