H9067-01

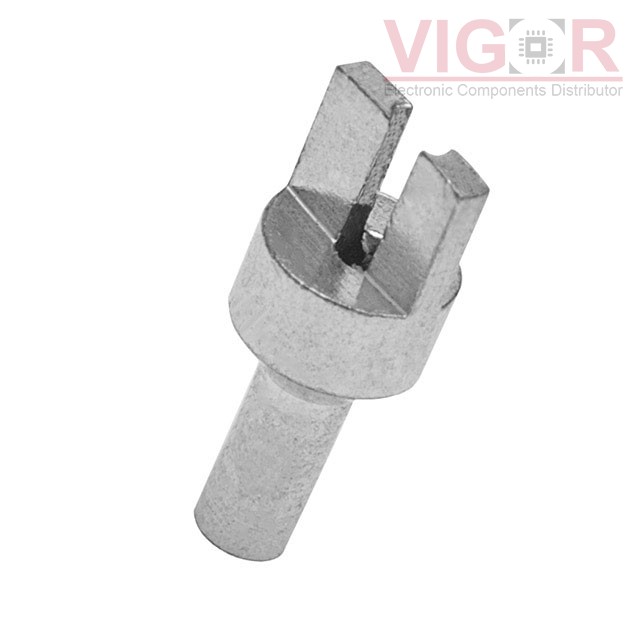

Image is for reference,
please contact us to get the real picture

Part No :: H9067-01

Manufacturer: Harwin

Description: TERM TURRET HOLLOW L=4.75MM TIN

Catalog: Terminals - Turret Connectors

DataSheet: H9067-01 PDF

Availability: 0 pieces

Unit Price: ~~$0.19575~~

Current price of H9067-01 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

H9067-01 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Terminal Type:	Single End, Fork, Hollow
Number of Turrets:	Single
Length - Above Board:	0.187" (4.75mm)
Length - Below Flange:	0.125" (3.18mm)
Length - Overall:	0.313" (7.95mm)
Mounting Type:	Through Hole
Termination:	Swage
Flange Diameter:	0.125" (3.18mm)
Diameter - Turret Head:	-
Staking Side OD:	0.059" ~ 0.060" (1.50mm ~ 1.52mm)
Staking Side ID:	0.042" ~ 0.043" (1.07mm ~ 1.09mm)
Mounting Hole Diameter:	0.060" ~ 0.063" (1.52mm ~ 1.60mm)
Board Thickness:	0.094" (2.39mm)
Contact Material:	Brass Alloy
Contact Finish:	Tin
Contact Finish Thickness:	-
Insulation:	Non-Insulated
