1503-2

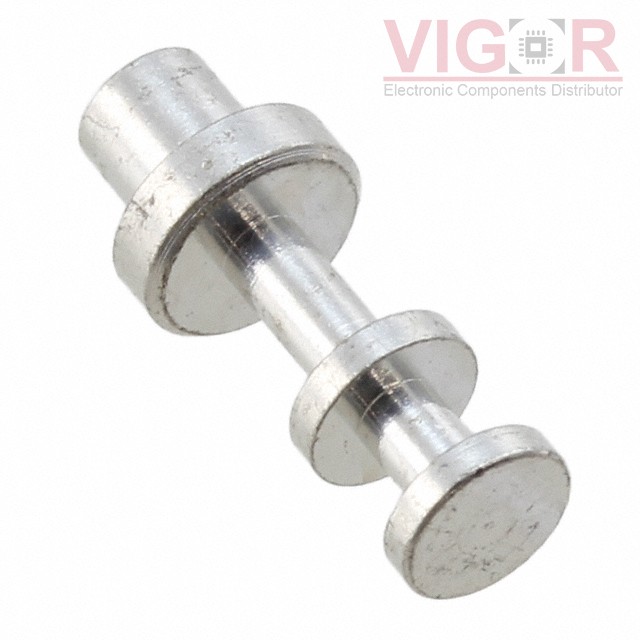

Image is for reference,
please contact us to get the real picture

Part No :: 1503-2

Manufacturer: Keystone Electronics Corp.

Description: TERM TURRET SINGLE L=9.14MM TIN

Catalog: Terminals - Turret Connectors

DataSheet: 1503-2 PDF

Availability: 1348127800 pieces

Unit Price: ~~$0.67000~~

Current price of 1503-2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

1503-2 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Terminal Type:	Single End
Number of Turrets:	Double
Length - Above Board:	0.360" (9.14mm)
Length - Below Flange:	0.109" (2.77mm)
Length - Overall:	0.469" (11.90mm)
Mounting Type:	Through Hole
Termination:	Staking Flare
Flange Diameter:	0.187" (4.75mm)
Diameter - Turret Head:	0.145" (3.68mm)
Staking Side OD:	0.112" (2.84mm)
Staking Side ID:	-
Mounting Hole Diameter:	0.116" (2.95mm)
Board Thickness:	0.062" (1.57mm)
Contact Material:	Brass
Contact Finish:	Tin
Contact Finish Thickness:	-
Insulation:	Non-Insulated

Please confirm the specifications of the products when ordering.
