1520-2

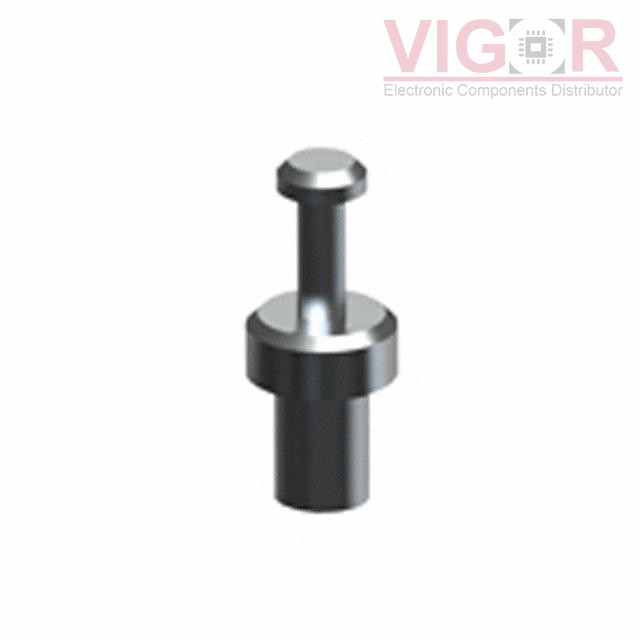

Image is for reference,
please contact us to get the real picture

Part No :: 1520-2

Manufacturer: Keystone Electronics Corp.

Description: TERM TURRET SINGLE L=4.75MM TIN

Catalog: Terminals - Turret Connectors

DataSheet: 1520-2 PDF

Availability: 2147483647 pieces

Unit Price: ~~$0.43000~~

Current price of 1520-2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

1520-2 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Terminal Type:	Single End
Number of Turrets:	Single
Length - Above Board:	0.187" (4.75mm)
Length - Below Flange:	0.109" (2.77mm)
Length - Overall:	0.296" (7.52mm)
Mounting Type:	Through Hole
Termination:	Staking Flare
Flange Diameter:	0.125" (3.18mm)
Diameter - Turret Head:	0.075" (1.91mm)
Staking Side OD:	0.078" (1.98mm)
Staking Side ID:	-
Mounting Hole Diameter:	0.082" (2.08mm)
Board Thickness:	0.062" (1.57mm)
Contact Material:	Brass
Contact Finish:	Tin
Contact Finish Thickness:	-
Insulation:	Non-Insulated
