H2039-01

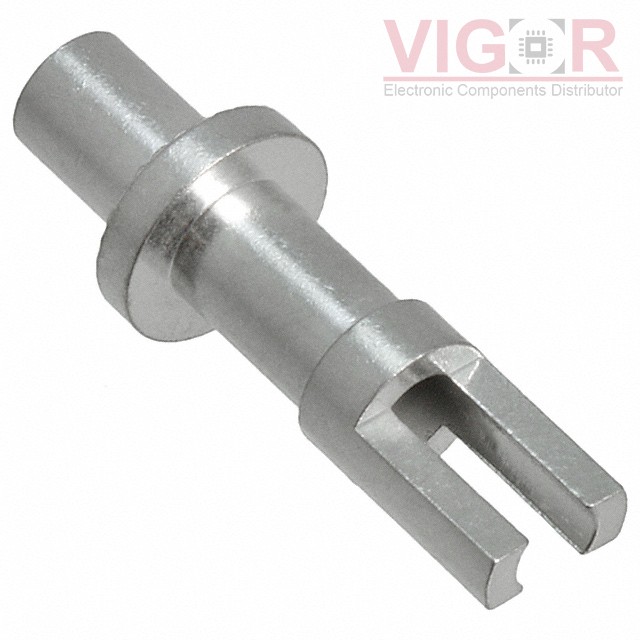

Image is for reference,
please contact us to get the real picture

Part No :: H2039-01

Manufacturer: Harwin

Description: TERM TURRET HOLLOW L=12.7MM TIN

Catalog: Terminals - Turret Connectors

DataSheet: H2039-01 PDF

Availability: 105 pieces

Unit Price: ~~$0.81000~~

Current price of H2039-01 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

H2039-01 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Terminal Type:	Single End, Fork, Hollow
Number of Turrets:	Single
Length - Above Board:	0.500" (12.70mm)
Length - Below Flange:	0.156" ~ 0.161" (3.96mm ~ 4.09mm)
Length - Overall:	0.656" (16.66mm)
Mounting Type:	Through Hole
Termination:	Swage
Flange Diameter:	0.219" (5.56mm)
Diameter - Turret Head:	0.151" ~ 0.156" (3.83mm ~ 3.96mm)
Staking Side OD:	0.122" ~ 0.125" (3.10mm ~ 3.18mm)
Staking Side ID:	0.086" ~ 0.089" (2.18mm ~ 2.26mm)
Mounting Hole Diameter:	0.126" ~ 0.129" (3.19mm ~ 3.28mm)
Board Thickness:	0.126" (3.20mm)
Contact Material:	Brass Alloy
Contact Finish:	Tin
Contact Finish Thickness:	-
Insulation:	Non-Insulated
