H9037-01

Part No :: H9037-01

Manufacturer: Harwin

VIGOR # :: 4703077

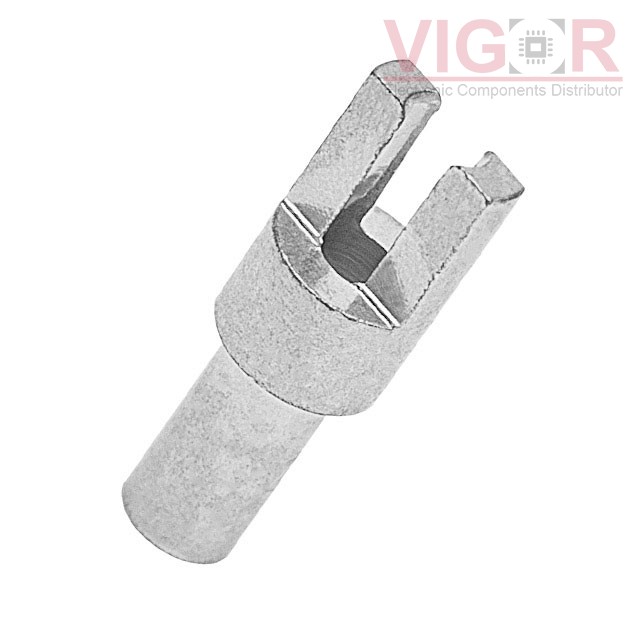

Description: TERM TURRET HOLLOW L=3.96MM TIN

Catalog: Terminals - Turret Connectors

DataSheet: H9037-01 PDF

Country of origin: -

Date code: -

H9037-01 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Obsolete
Terminal Type:	Single End, Fork, Hollow
Number of Turrets:	Single
Length - Above Board:	0.156" (3.96mm)
Length - Below Flange:	0.094" ~ 0.099" (2.39mm ~ 2.51mm)
Length - Overall:	0.281" (7.14mm)
Mounting Type:	Through Hole
Termination:	Swage
Flange Diameter:	0.094" (2.39mm)
Diameter - Turret Head:	-
Staking Side OD:	0.061" ~ 0.064" (1.55mm ~ 1.63mm)
Staking Side ID:	-
Mounting Hole Diameter:	0.064" ~ 0.068" (1.63mm ~ 1.72mm)
Board Thickness:	0.094" (2.39mm)
Contact Material:	Brass Alloy
Contact Finish:	Tin
Contact Finish Thickness:	-
Insulation:	Non-Insulated
