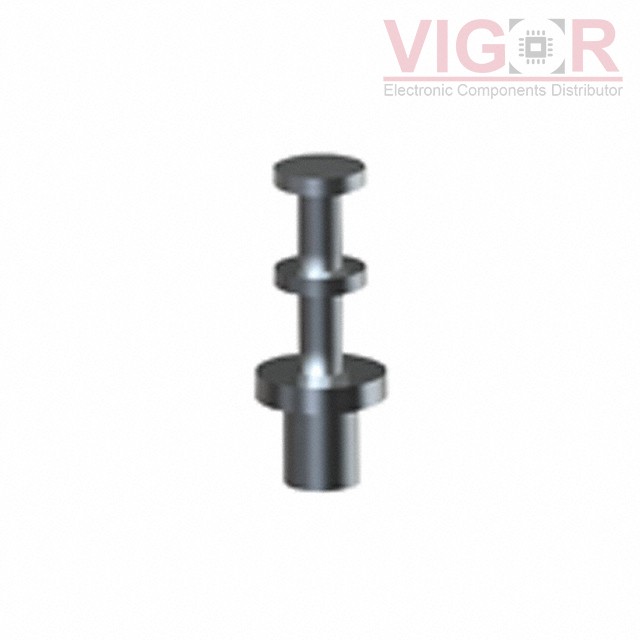

1514-4

Part No :: 1514-4

Manufacturer: Keystone Electronics Corp.

Description: TERM TURRET SINGLE L=7.14MM TIN

Catalog: Terminals - Turret Connectors

DataSheet: 1514-4 PDF

Availability: 5000 pieces

Current price of 1514-4 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

1514-4 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Terminal Type:	Single End
Number of Turrets:	Double
Length - Above Board:	0.281" (7.14mm)
Length - Below Flange:	0.165" (4.19mm)
Length - Overall:	0.446" (11.33mm)
Mounting Type:	Through Hole
Termination:	Staking Flare
Flange Diameter:	0.156" (3.96mm)
Diameter - Turret Head:	0.109" (2.77mm)
Staking Side OD:	0.090" (2.29mm)
Staking Side ID:	-
Mounting Hole Diameter:	0.094" (2.39mm)
Board Thickness:	0.125" (3.18mm)
Contact Material:	Brass
Contact Finish:	Tin
Contact Finish Thickness:	-
Insulation:	Non-Insulated

Please confirm the specifications of the products when ordering.
