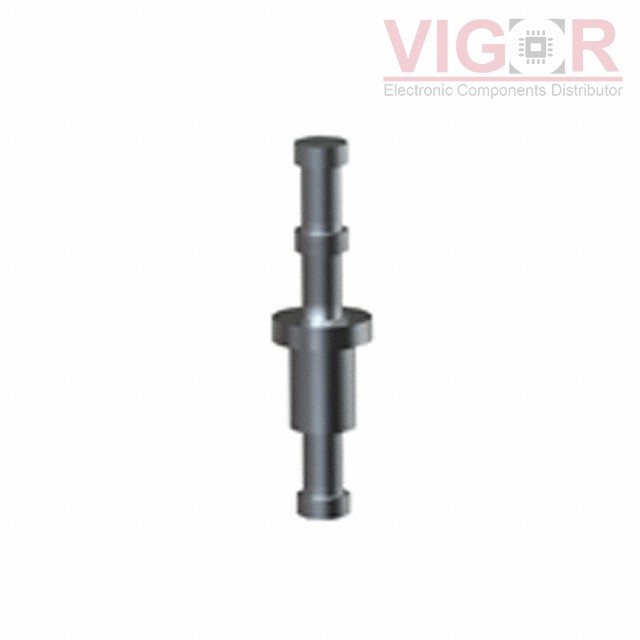

1613-1

Part No :: 1613-1

Manufacturer: Keystone Electronics Corp.

Description: TERM TURRET DOUBLE L=4.72MM TIN

Catalog: Terminals - Turret Connectors

DataSheet: 1613-1 PDF

Availability: 0 pieces

Current price of 1613-1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

1613-1 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Terminal Type:	Double End
Number of Turrets:	Single, Double
Length - Above Board:	0.186" (4.72mm)
Length - Below Flange:	0.135" (3.43mm)
Length - Overall:	0.321" (8.15mm)
Mounting Type:	Through Hole
Termination:	Staking Flare
Flange Diameter:	0.093" (2.36mm)
Diameter - Turret Head:	0.050" (1.27mm)
Staking Side OD:	0.062" (1.57mm)
Staking Side ID:	-
Mounting Hole Diameter:	0.067" (1.70mm)
Board Thickness:	0.032" (0.81mm)
Contact Material:	Brass
Contact Finish:	Tin
Contact Finish Thickness:	-
Insulation:	Non-Insulated

Please confirm the specifications of the products when ordering.
