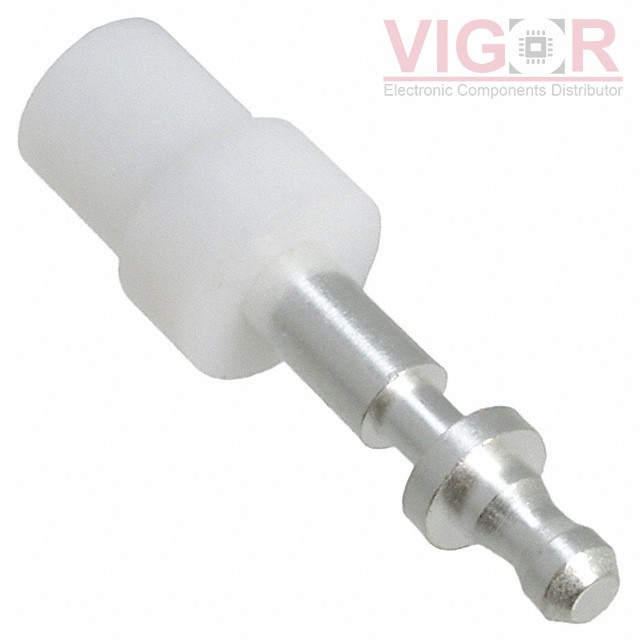

W2222-00

Part No :: W2222-00

Manufacturer: Harwin

Description: TERM TURRET PIN L=6.5MM SILVER

Catalog: Terminals - Turret Connectors

DataSheet: W2222-00 PDF

Availability: 0 pieces

Current price of W2222-00 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

W2222-00 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Obsolete
Terminal Type:	Double End, Pin
Number of Turrets:	Single
Length - Above Board:	0.256" (6.50mm)
Length - Below Flange:	0.303" (7.70mm)
Length - Overall:	0.560" (14.22mm)
Mounting Type:	Through Hole
Termination:	Press-Fit
Flange Diameter:	0.187" (4.75mm)
Diameter - Turret Head:	-
Staking Side OD:	-
Staking Side ID:	-
Mounting Hole Diameter:	0.156" (3.96mm)
Board Thickness:	0.028" ~ 0.063" (0.72mm ~ 1.60mm)
Contact Material:	Brass
Contact Finish:	Silver
Contact Finish Thickness:	137.8µin (3.50µm)
Insulation:	Insulated
