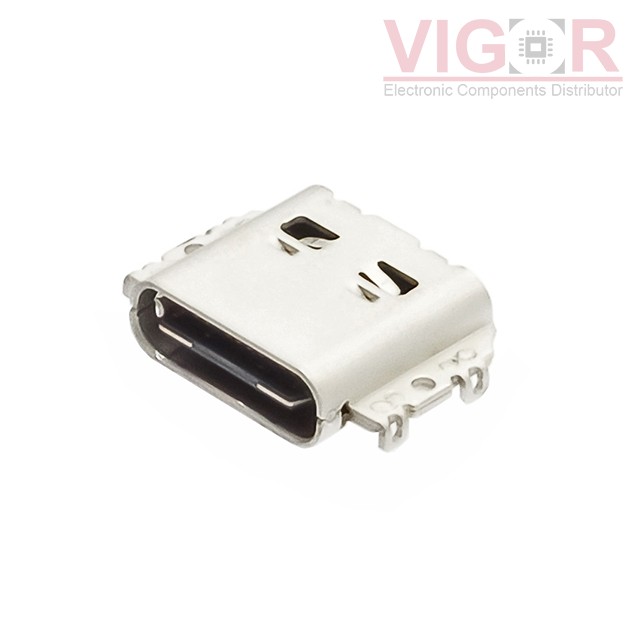

1054540101

Part No :: 1054540101

Manufacturer: Woodhead - Molex

Description: CONN RCP USB3.1 TYPEC 24P SMD RA

Catalog: USB, DVI, HDMI Connectors

DataSheet: 1054540101 PDF

Availability: 1292 pieces

Unit Price: ~~$2.23000~~

Current price of 1054540101 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

1054540101 Specifications

Type	Description
Series:	105454
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Connector Type:	USB-C (USB TYPE-C)
Number of Contacts:	24
Gender:	Receptacle
Specifications:	USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1))
Mounting Type:	Board Cutout, Surface Mount, Right Angle
Mounting Feature:	Horizontal, Mid Mount
Termination:	Solder
Features:	-
Ingress Protection:	-
Operating Temperature:	-30°C ~ 85°C
Number of Ports:	1
Current Rating (Amps):	0.25A, 1.25A, 5A
Voltage - Rated:	30VAC/DC
Mating Cycles:	10000
Shielding:	Shielded
