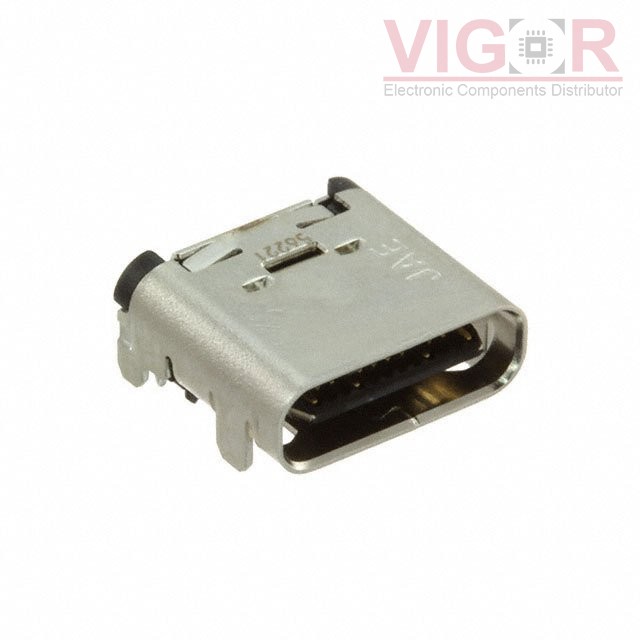

DX07S024JJ2R1300

Image is for reference,
please contact us to get the real picture

Part No :: DX07S024JJ2R1300

Manufacturer: JAE Electronics

Description: CONN RCP USB3.1 TYPEC 24P SMD RA

Catalog: USB, DVI, HDMI Connectors

DataSheet: DX07S024JJ2R1300 PDF

Availability: 8339 pieces

Unit Price: ~~$2.38000~~

Current price of DX07S024JJ2R1300 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

DX07S024JJ2R1300 Specifications

Type	Description
Series:	DX07
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Connector Type:	USB-C (USB TYPE-C)
Number of Contacts:	24
Gender:	Receptacle
Specifications:	USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1))
Mounting Type:	Surface Mount, Right Angle; Through Hole
Mounting Feature:	Horizontal
Termination:	Solder
Features:	Pick and Place
Ingress Protection:	-
Operating Temperature:	-30°C ~ 80°C
Number of Ports:	1
Current Rating (Amps):	0.25A, 1.25A
Voltage - Rated:	20V
Mating Cycles:	10000
Shielding:	Shielded

Please confirm the specifications of the products when ordering.
