DX07B024JJ3R1600

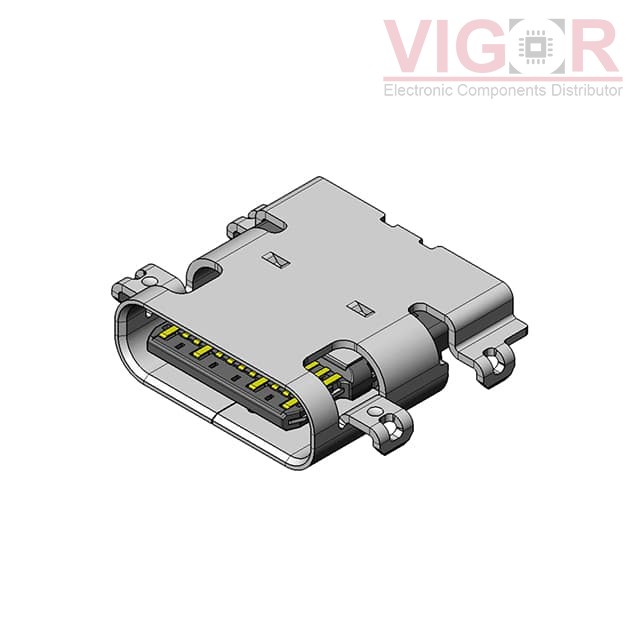

Image is for reference,
please contact us to get the real picture

Part No :: DX07B024JJ3R1600

Manufacturer: JAE Electronics

Description: CONN RCP USB3.1 TYPEC 24P SMD RA

Catalog: USB, DVI, HDMI Connectors

DataSheet: DX07B024JJ3R1600 PDF

Availability: 2438 pieces

Unit Price: ~~$2.38000~~

Current price of DX07B024JJ3R1600 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

DX07B024JJ3R1600 Specifications

Type	Description
Series:	DX07
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Connector Type:	USB-C (USB TYPE-C)
Number of Contacts:	24
Gender:	Receptacle
Specifications:	USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1))
Mounting Type:	Board Cutout, Surface Mount, Right Angle; Through Hole
Mounting Feature:	Horizontal, Mid Mount
Termination:	Solder
Features:	-
Ingress Protection:	-
Operating Temperature:	-30°C ~ 80°C
Number of Ports:	1
Current Rating (Amps):	0.25A, 1.25A
Voltage - Rated:	20V
Mating Cycles:	10000
Shielding:	Shielded
