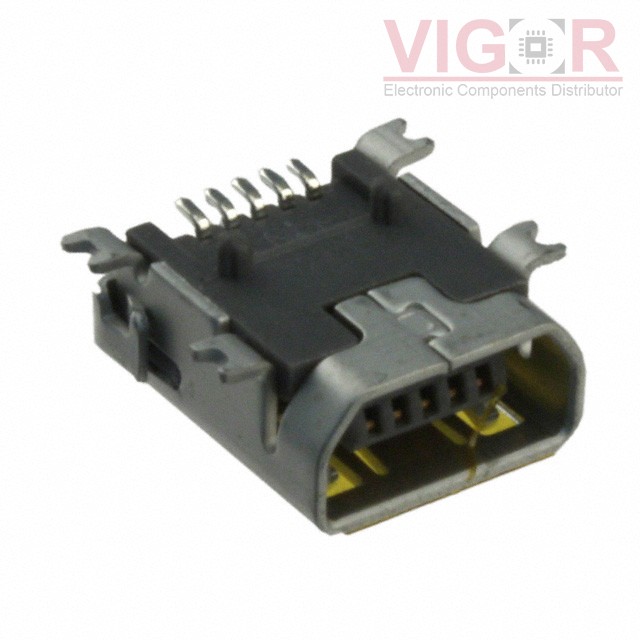

DX3R005HN2E700

Part No :: DX3R005HN2E700

Manufacturer: JAE Electronics

VIGOR # :: 4626284

Description: CONN RCPT USB2.0 MINI AB SMD R/A

Catalog: USB, DVI, HDMI Connectors

DataSheet: DX3R005HN2E700 PDF

Country of origin: -

Date code: -

DX3R005HN2E700 Specifications

Type	Description
Series:	DX3
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Connector Type:	USB - mini AB
Number of Contacts:	5
Gender:	Receptacle
Specifications:	USB 2.0
Mounting Type:	Surface Mount, Right Angle
Mounting Feature:	Horizontal
Termination:	Solder
Features:	Board Guide, Solder Retention
Ingress Protection:	-
Operating Temperature:	-20°C ~ 60°C
Number of Ports:	1
Current Rating (Amps):	1A
Voltage - Rated:	30V
Mating Cycles:	5000
Shielding:	Unshielded

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Jan 11 - Jan 15 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price

Current price of DX3R005HN2E700 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

A-IE-E-DIP-R

CONN RCPT IEEE 1394 FIREWIRE R/A

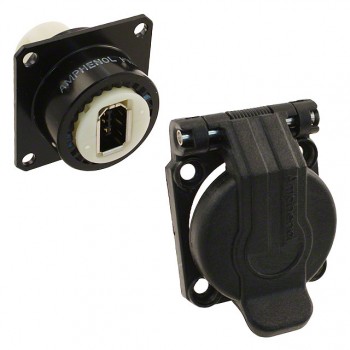

FWF21BSCC

CONN RCP IEEE1394 FIREWIR PNL MT

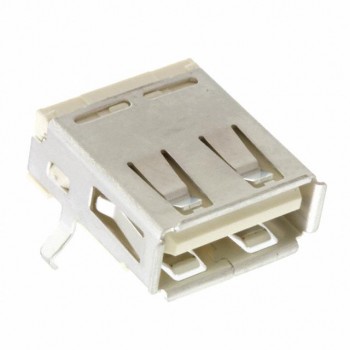

0676431931
