830017146

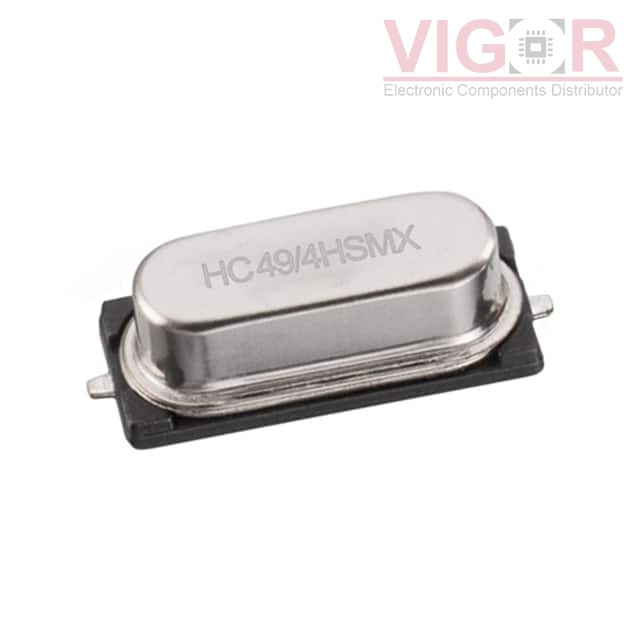

Image is for reference,
please contact us to get the real picture

Part No :: 830017146

Manufacturer: Würth Elektronik Midcom

Description: WE-XTAL QUARTZ CRYSTAL 20.0 MHZ;

Catalog: Crystals

DataSheet: 830017146 PDF

Availability: 0 pieces

Unit Price: ~~$0.35000~~

Current price of 830017146 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

830017146 Specifications

Type	Description
Series:	HC49/4HSMX
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	MHz Crystal
Frequency:	20 MHz
Frequency Stability:	±50ppm
Frequency Tolerance:	±30ppm
Load Capacitance:	30pF
ESR (Equivalent Series Resistance):	40 Ohms
Operating Mode:	Fundamental
Operating Temperature:	-10°C ~ 60°C
Ratings:	-
Mounting Type:	Surface Mount
Package / Case:	HC-49/US
Size / Dimension:	0.449" L x 0.193" W (11.40mm x 4.90mm)
Height - Seated (Max):	0.169" (4.30mm)

Please confirm the specifications of the products when ordering.
