ECS-147.4-20-5PXDU-TR

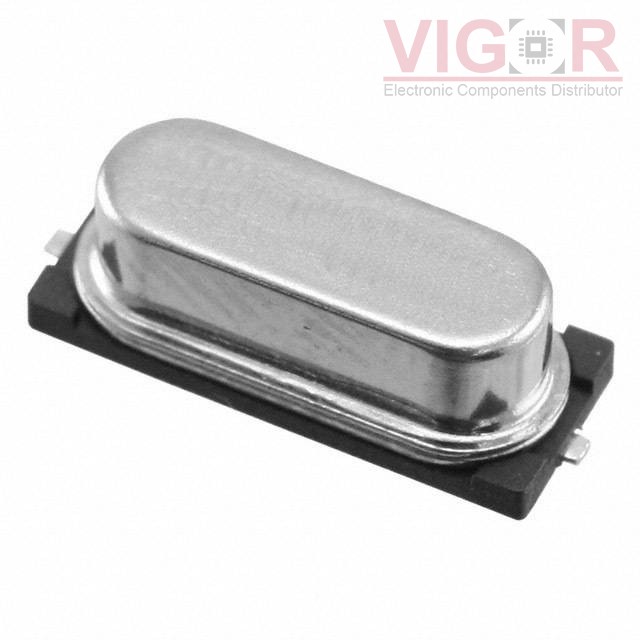

Image is for reference,
please contact us to get the real picture

Part No :: ECS-147.4-20-5PXDU-TR

Manufacturer: ECS Inc. International

Description: CRYSTAL 14.7456MHZ 20PF SMD

Catalog: Crystals

DataSheet: ECS-147.4-20-5PXDU-TR PDF

Availability: 655712000 pieces

Unit Price: ~~$1.01000~~

Current price of ECS-147.4-20-5PXDU-TR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

ECS-147.4-20-5PXDU-TR Specifications

Type	Description
Series:	CSM-7X-DU
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	MHz Crystal
Frequency:	14.7456 MHz
Frequency Stability:	±100ppm
Frequency Tolerance:	±30ppm
Load Capacitance:	20pF
ESR (Equivalent Series Resistance):	40 Ohms
Operating Mode:	Fundamental
Operating Temperature:	-55°C ~ 125°C
Ratings:	-
Mounting Type:	Surface Mount
Package / Case:	HC-49/US
Size / Dimension:	0.449" L x 0.189" W (11.40mm x 4.80mm)
Height - Seated (Max):	0.169" (4.30mm)
