CX2520SB13560D0GEJZ1

CX2520SB13560D0GEJZ1

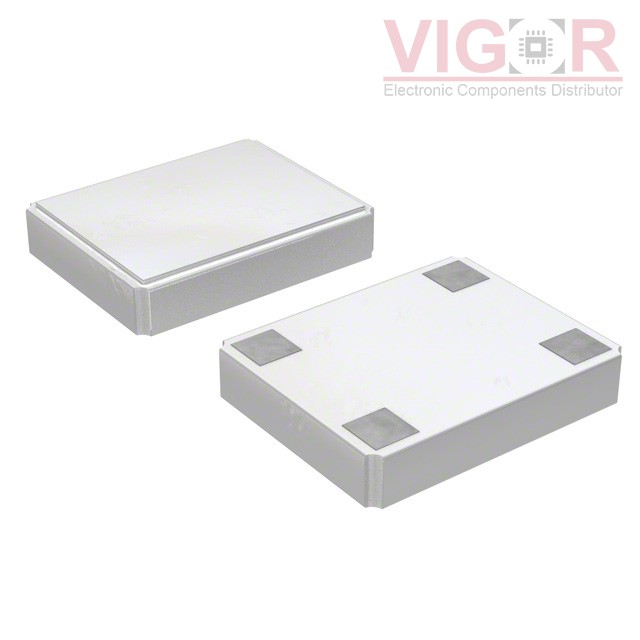

Image is for reference,
please contact us to get the real picture

Part No :

CX2520SB13560D0GEJZ1

Manufacturer
KYOCERA Corporation
Description
CRYSTAL 13.5600MHZ 8PF SMD
Catalog
Crystals
Shipped from
HK warehouse
Expected Shipping Date
Oct 07 - Oct 11 2025
DataSheet
CX2520SB13560D0GEJZ1 PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of CX2520SB13560D0GEJZ1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CX2520SB13560D0GEJZ1 Specifications
Type Description
Series:CX2520SB, Kyocera
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Obsolete
Type:MHz Crystal
Frequency:13.56 MHz
Frequency Stability:±15ppm
Frequency Tolerance:±15ppm
Load Capacitance:8pF
ESR (Equivalent Series Resistance):150 Ohms
Operating Mode:Fundamental
Operating Temperature:-10°C ~ 70°C
Ratings:-
Mounting Type:Surface Mount
Package / Case:4-SMD, No Lead
Size / Dimension:0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max):0.022" (0.55mm)
