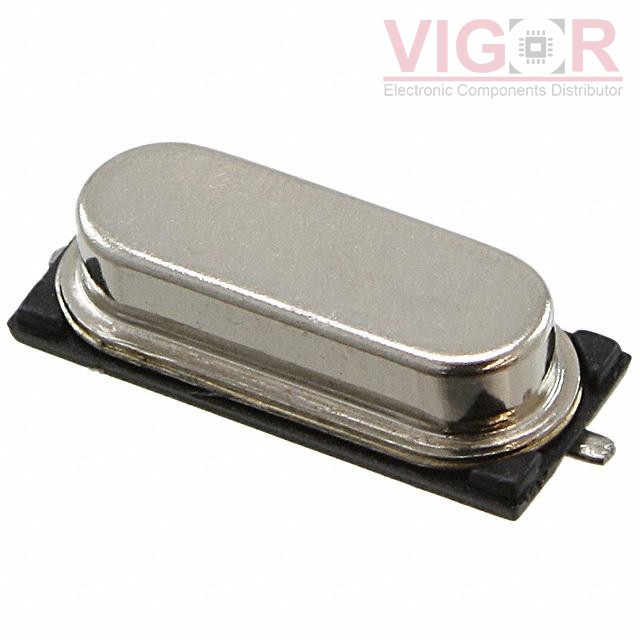

CSM4Z-A2B3C3-40-33.0D18

Part No :: CSM4Z-A2B3C3-40-33.0D18

Manufacturer: Cardinal Components

VIGOR # :: 4516476

Description: CRYSTAL 33.0000MHZ 18PF SMD

Catalog: Crystals

DataSheet: CSM4Z-A2B3C3-40-33.0D18 PDF

Country of origin: -

Date code: -

CSM4Z-A2B3C3-40-33.0D18 Specifications

Type	Description
Series:	CSM4
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Type:	MHz Crystal
Frequency:	33 MHz
Frequency Stability:	±30ppm
Frequency Tolerance:	±30ppm
Load Capacitance:	18pF
ESR (Equivalent Series Resistance):	40 Ohms
Operating Mode:	3rd Overtone
Operating Temperature:	-40°C ~ 85°C
Ratings:	-
Mounting Type:	Surface Mount
Package / Case:	HC-49S
Size / Dimension:	0.449" L x 0.185" W (11.40mm x 4.70mm)
Height - Seated (Max):	0.138" (3.50mm)
