ABM10AIG-20.000MHZ-J4Z-T3

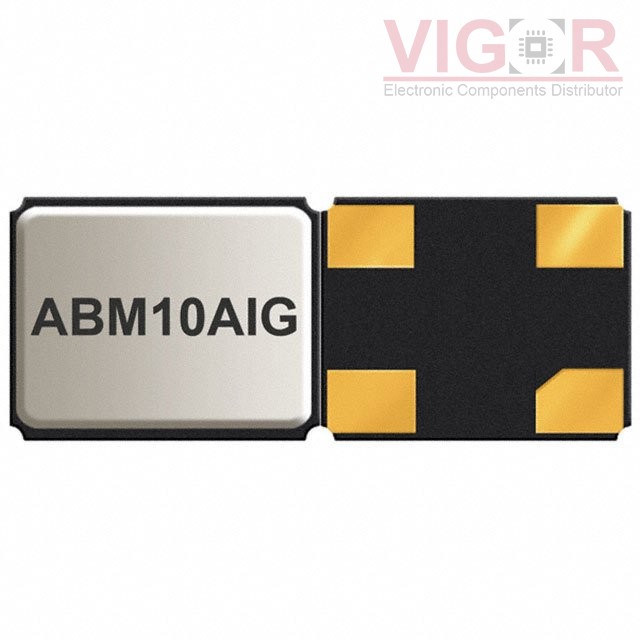

Image is for reference,
please contact us to get the real picture

Part No :: ABM10AIG-20.000MHZ-J4Z-T3

Manufacturer: Abracon

Description: CRYSTAL 20.0000MHZ 10PF SMD

Catalog: Crystals

Shipped from: HK warehouse

Expected Shipping Date: Nov 01 - Nov 05 2025

DataSheet: ABM10AIG-20.000MHZ-J4Z-T3 PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of ABM10AIG-20.000MHZ-J4Z-T3 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ABM10AIG-20.000MHZ-J4Z-T3 Specifications

Type	Description
Series:	ABM10AIG
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	MHz Crystal
Frequency:	20 MHz
Frequency Stability:	±50ppm
Frequency Tolerance:	±30ppm
Load Capacitance:	10pF
ESR (Equivalent Series Resistance):	60 Ohms
Operating Mode:	Fundamental
Operating Temperature:	-40°C ~ 105°C
Ratings:	AEC-Q200
Mounting Type:	Surface Mount
Package / Case:	4-SMD, No Lead
Size / Dimension:	0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max):	0.026" (0.65mm)

Please confirm the specifications of the products when ordering.
