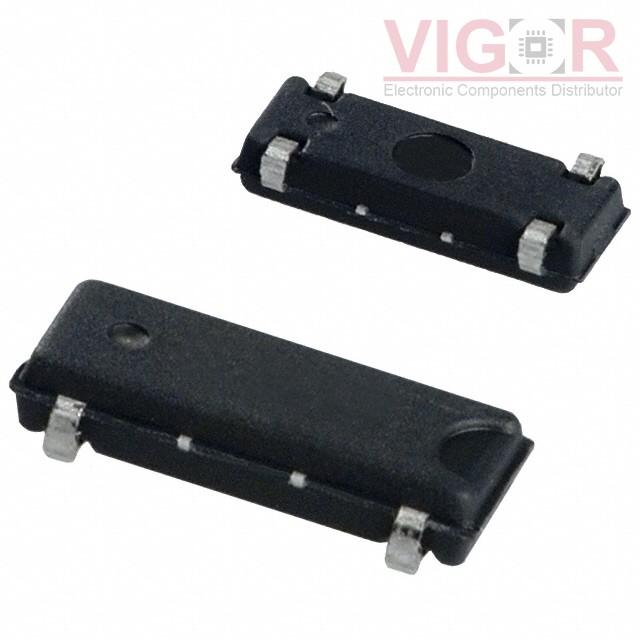

MC-156 32.7680KA-AG3: ROHS

Part No :: MC-156 32.7680KA-AG3: ROHS

Manufacturer: Epson

VIGOR # :: 4519616

Description: CRYSTAL 32.7680KHZ 7PF SMD

Catalog: Crystals

DataSheet: MC-156 32.7680KA-AG3: ROHS PDF

Country of origin: -

Date code: -

MC-156 32.7680KA-AG3: ROHS Specifications

Type	Description
Series:	MC-156
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Type:	kHz Crystal (Tuning Fork)
Frequency:	32.768 kHz
Frequency Stability:	-
Frequency Tolerance:	±20ppm
Load Capacitance:	7pF
ESR (Equivalent Series Resistance):	65 kOhms
Operating Mode:	Fundamental
Operating Temperature:	-40°C ~ 85°C
Ratings:	-
Mounting Type:	Surface Mount
Package / Case:	4-SOJ, 5.08mm pitch
Size / Dimension:	0.280" L x 0.098" W (7.10mm x 2.50mm)
Height - Seated (Max):	0.059" (1.50mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

May 13 - May 17 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price

Current price of MC-156 32.7680KA-AG3: ROHS is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
