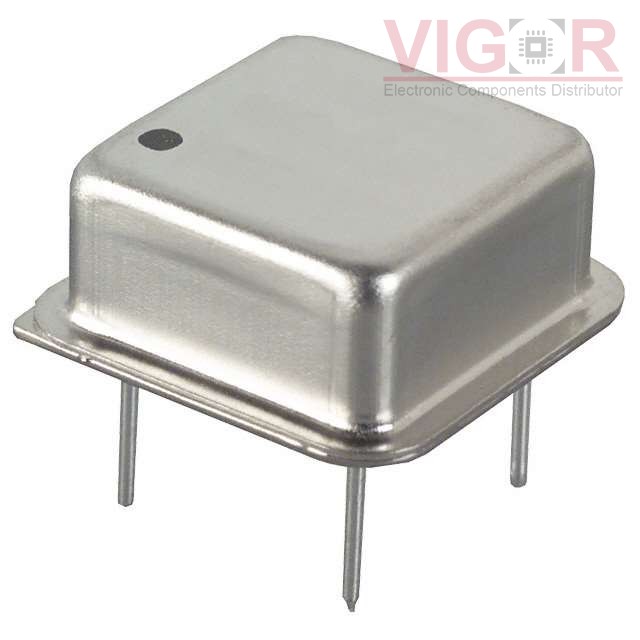

ECS-2100AX-184

Part No :: ECS-2100AX-184

Manufacturer: ECS Inc. International

VIGOR # :: 2179400

Description: XTAL OSC XO 18.4320MHZ HCMOS TTL

Catalog: Oscillators

DataSheet: ECS-2100AX-184 PDF

Country of origin: -

Date code: -

ECS-2100AX-184 Specifications

Type	Description
Series:	ECS-2100X
Package:	Bulk
Part Status:	Active
Base Resonator:	Crystal
Type:	XO (Standard)
Frequency:	18.432 MHz
Function:	-
Output:	HCMOS, TTL
Voltage - Supply:	5V
Frequency Stability:	±100ppm
Absolute Pull Range (APR):	-
Operating Temperature:	0°C ~ 70°C
Spread Spectrum Bandwidth:	-
Current - Supply (Max):	25mA
Ratings:	-
Mounting Type:	Through Hole
Package / Case:	8-DIP, 4 Leads (Half Size, Metal Can)
Size / Dimension:	0.520" L x 0.520" W (13.20mm x 13.20mm)
Height - Seated (Max):	0.213" (5.40mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 913

Shipped from

HK warehouse

Expected Shipping Date

Feb 03 - Feb 07 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$3.12~~	~~$3.12~~
10	~~$3.05~~	~~$30.51~~
50	~~$2.91~~	~~$145.26~~
100	~~$2.54~~	~~$254.21~~
500	~~$2.47~~	~~$1 234.74~~
1000	~~$2.11~~	~~$2 106.32~~
2500	~~$1.96~~	~~$4 902.62~~
5000	~~$1.89~~	~~$9 442.10~~

Current price of ECS-2100AX-184 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
