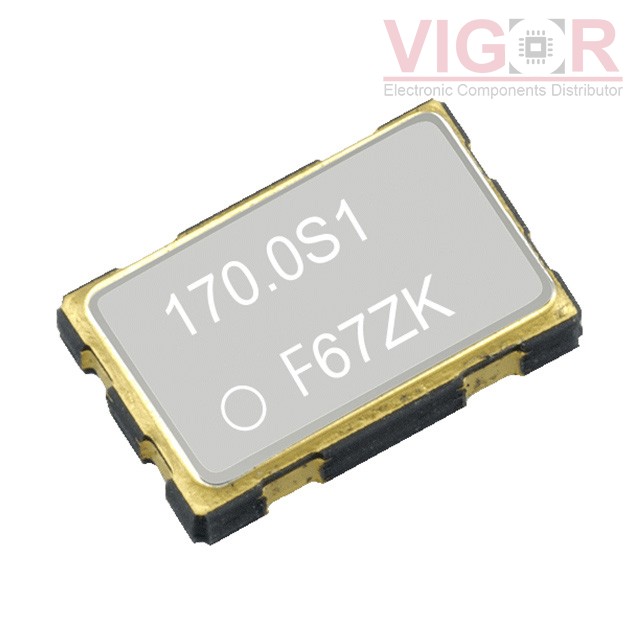

SG-9101CB 14.7456M-C20PHAAA5

Part No :: SG-9101CB 14.7456M-C20PHAAA5

Manufacturer: Epson

VIGOR # :: 2283498

Description: XTAL OSC XO 14.7456MHZ CMOS SMD

Catalog: Oscillators

DataSheet: SG-9101CB 14.7456M-C20PHAAA5 PDF

Country of origin: -

Date code: -

SG-9101CB 14.7456M-C20PHAAA5 Specifications

Type	Description
Series:	SG-9101
Package:	Tape & Reel (TR)
Part Status:	Active
Base Resonator:	Crystal
Type:	XO (Standard)
Frequency:	14.7456 MHz
Function:	Enable/Disable
Output:	CMOS
Voltage - Supply:	1.62V ~ 3.63V
Frequency Stability:	-
Absolute Pull Range (APR):	-
Operating Temperature:	-40°C ~ 105°C
Spread Spectrum Bandwidth:	±2.00%, Center Spread
Current - Supply (Max):	8.3mA
Ratings:	-
Mounting Type:	Surface Mount
Package / Case:	4-SMD, No Lead
Size / Dimension:	0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max):	0.051" (1.30mm)
