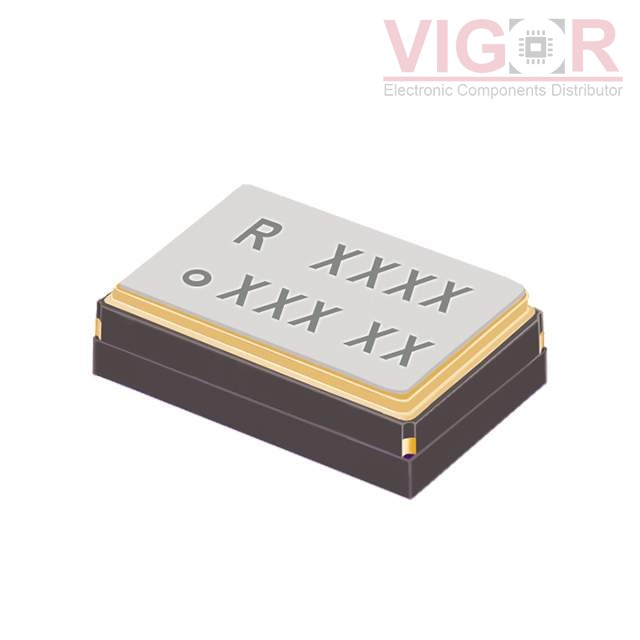

ASTXR-12-26.000MHZ-512545

Part No :: ASTXR-12-26.000MHZ-512545

Manufacturer: Abracon

VIGOR # :: 4522244

Description: XTAL OSC TCXO 26.0000MHZ SNWV

Catalog: Oscillators

DataSheet: ASTXR-12-26.000MHZ-512545 PDF

Country of origin: -

Date code: -

ASTXR-12-26.000MHZ-512545 Specifications

Type	Description
Series:	ASTXR
Package:	Strip
Part Status:	Obsolete
Base Resonator:	Crystal
Type:	TCXO
Frequency:	26 MHz
Function:	Enable/Disable
Output:	Clipped Sine Wave
Voltage - Supply:	1.8V
Frequency Stability:	±500ppb
Absolute Pull Range (APR):	-
Operating Temperature:	-40°C ~ 85°C
Spread Spectrum Bandwidth:	-
Current - Supply (Max):	1.5mA
Ratings:	-
Mounting Type:	Surface Mount
Package / Case:	6-SMD, No Lead
Size / Dimension:	0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max):	0.035" (0.90mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Sep 21 - Sep 25 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price

Current price of ASTXR-12-26.000MHZ-512545 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

TB-66.667MBD-T

MEMS OSC XO 66.6670MHZ CMOS SMD

ASTMHTD-50.000MHZ-ZC-E

MEMS OSC XO 50.0000MHZ LVCMOS

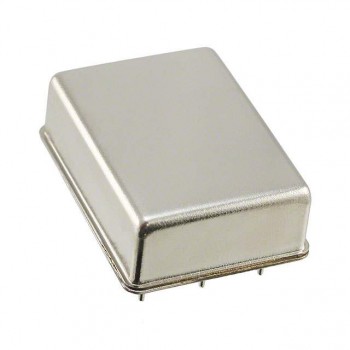

AOCJY4B-26.000MHZ-E-SW
