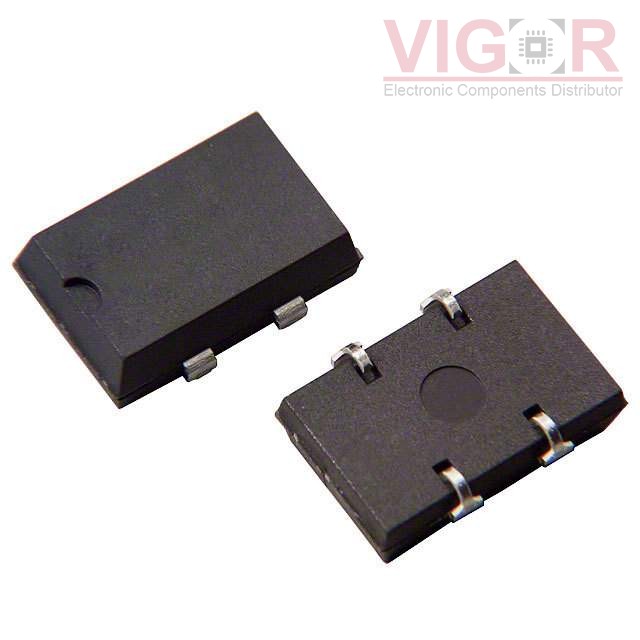

ASM-14.7456MHZ-ET

Part No :: ASM-14.7456MHZ-ET

Manufacturer: Abracon

VIGOR # :: 4547633

Description: XTAL OSC XO 14.7456MHZ HCMOS TTL

Catalog: Oscillators

DataSheet: ASM-14.7456MHZ-ET PDF

Country of origin: -

Date code: -

ASM-14.7456MHZ-ET Specifications

Type	Description
Series:	ASM
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Base Resonator:	Crystal
Type:	XO (Standard)
Frequency:	14.7456 MHz
Function:	Enable/Disable
Output:	HCMOS, TTL
Voltage - Supply:	5V
Frequency Stability:	±100ppm
Absolute Pull Range (APR):	-
Operating Temperature:	-20°C ~ 70°C
Spread Spectrum Bandwidth:	-
Current - Supply (Max):	20mA
Ratings:	-
Mounting Type:	Surface Mount
Package / Case:	4-SOJ, 5.08mm pitch
Size / Dimension:	0.551" L x 0.352" W (14.00mm x 8.95mm)
Height - Seated (Max):	0.185" (4.70mm)
