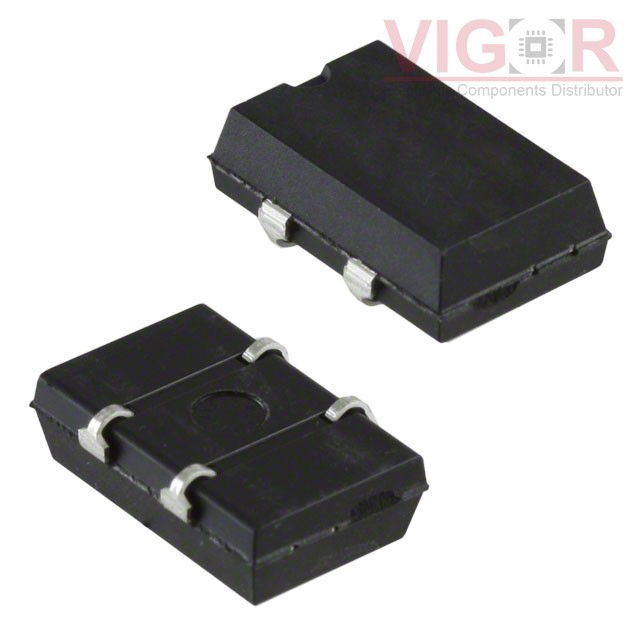

SG-615P 22.4000MC3

Part No :: SG-615P 22.4000MC3

Manufacturer: Epson

VIGOR # :: 4551410

Description: XTAL OSC XO 22.4000MHZ CMOS TTL

Catalog: Oscillators

DataSheet: SG-615P 22.4000MC3 PDF

Country of origin: -

Date code: -

SG-615P 22.4000MC3 Specifications

Type	Description
Series:	SG-615
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Base Resonator:	Crystal
Type:	XO (Standard)
Frequency:	22.4 MHz
Function:	Enable/Disable
Output:	CMOS, TTL
Voltage - Supply:	5V
Frequency Stability:	±100ppm
Absolute Pull Range (APR):	-
Operating Temperature:	-20°C ~ 70°C
Spread Spectrum Bandwidth:	-
Current - Supply (Max):	23mA
Ratings:	-
Mounting Type:	Surface Mount
Package / Case:	4-SOJ, 5.08mm pitch
Size / Dimension:	0.551" L x 0.341" W (14.00mm x 8.65mm)
Height - Seated (Max):	0.185" (4.70mm)
