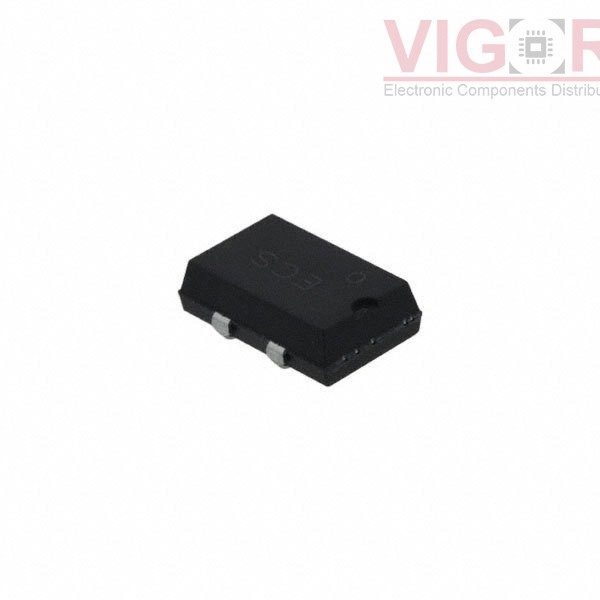

ECS-P8F5-B

Part No :: ECS-P8F5-B

Manufacturer: ECS Inc. International

VIGOR # :: 4511851

Description: XTAL OSC PROG XO HCMOS 5V 50PPM

Catalog: Programmable Oscillators

DataSheet: ECS-P8F5-B PDF

Country of origin: -

Date code: -

ECS-P8F5-B Specifications

Type	Description
Series:	ECS-P8F5X
Package:	Tube
Part Status:	Obsolete
Base Resonator:	Crystal
Type:	XO (Standard)
Programmable Type:	Programmed by Digi-Key (Enter your frequency in Web Order Notes)
Available Frequency Range:	1 MHz ~ 150.0 MHz
Function:	Enable/Disable
Output:	HCMOS
Voltage - Supply:	5V
Frequency Stability:	-
Frequency Stability (Total):	±50ppm
Operating Temperature:	-10°C ~ 70°C
Spread Spectrum Bandwidth:	-
Current - Supply (Max):	45mA
Ratings:	-
Mounting Type:	Surface Mount
Package / Case:	4-SOJ, 5.08mm pitch
Size / Dimension:	0.551" L x 0.341" W (14.00mm x 8.65mm)
Height - Seated (Max):	0.185" (4.70mm)
